Facial Soft Tissue Changes after Maxillary Impaction and Mandibular Advancement in High Angle Class II Cases
1. Istanbul University, Faculty of Dentistry, Department of Maxillofacial Surgery, Istanbul, TURKEY.
2. Okmeydani Dental Hospital, Department of Maxillofacial Surgery, Istanbul, TURKEY.
3. Istanbul University, Faculty of Dentistry, Department of Orthodontics, Istanbul, TURKEY.
Aydil B, Özer N, Marşan G. Facial Soft Tissue Changes after Maxillary Impaction and Mandibular Advancement in High Angle Class II Cases. Int J Med Sci 2012; 9(4):316-321. doi:10.7150/ijms.4247. Available from http://www.medsci.org/v09p0316.htm
The aim of this study was to determine the vertical and anteroposterior alterations in the soft, the dental and the skeletal tissues associated with the facial profile after Le Fort I maxillary impaction in conjunction with sagittal split osteotomy for mandibular advancement performed in patients with a high angle Class II skeletal deformity.
The study population consists of 21 patients (11 females and 10 males, mean age 24.5±1.6 years) who underwent Le Fort I maxillary impaction in conjunction with sagittal split osteotomy for mandibular advancement. Lateral cephalograms were obtained prior to the surgery and 1.3±0.2 years postoperatively. Wilcoxon test was performed to compare the pre- and postsurgical cephalometric measurements. Pearson correlation test was carried out to determine the relative changes in skeletal, dental and the facial soft tissues.
The insignificant decrease in the nasolabial angle was correlated with the significant decrease in the vertical position of the nose due to the nasal protraction noticed after bimaxillary surgery. The retraction of both the upper lip and the upper incisors was correlated with the insignificant decrease in the columella-lobular angle. The insignificant decrease in both the vertical height of the mandibular B point and the lower incisors was correlated with the insignificant decrease in vertical height of the soft tissue pogonion, attributable to the resulting superior movement of the soft tissues of the chin and the counter clockwise rotation of the mandible after maxillary impaction and bilateral sagittal split osteotomy, respectively.
Le Fort I maxillary impaction in conjunction with mandibular sagittal split osteotomy for mandibular advancement significantly affected the vertical and anteroposterior positions of the maxilla and the mandible, respectively. When performed in combination, these surgical techniques may efficiently alter the position of upper incisor and the nasal position in both vertical and anteroposterior directions. Bimaxillary orthognathic surgery seems to be an efficient method for obtaining satisfactory results in the appearance of the soft, the dental and the skeletal tissues associated with the facial profile in patients with high angle Class II skeletal deformity.
Keywords: vertical and anteroposterior alterations, Le Fort I maxillary impaction, Class II skeletal deformity.
Orthognathic surgery is carried out to correct the congenital or the acquired deformities of the jaws.1,35 The capacity to alter the appearance of the facial profile increases when orthognathic surgery is performed in conjunction with orthodontics. The alterations in features of the facial soft tissues are confined to the lower third of the face when orthodontic treatment is carried out alone. However both the middle and lower thirds of the face can be altered efficiently when orthodontic treatment is performed in conjunction with orthognathic surgery.1,35,37,41 The identification of the aesthetic factors and the prediction of the final profile of the facial soft tissues play important roles in planning the orthognathic treatment.
Numerous studies have attempted to quantify the changes in the facial soft tissues after orthognathic surgery.1-11,13-34,37,38 While some studies reported on the changes in soft tissues associated with maxillary intrusion 12,32,35,39 others evaluated the outcomes of orthognathic surgery for mandibular advancement.3,4,17,20,25,40,41 The aim of this study was to determine the vertical and anteroposterior alterations in the soft, the dental and the skeletal tissues associated with the facial profile after Le Fort I maxillary impaction in conjunction with sagittal split osteotomy for mandibular advancement performed in patients with a high angle Class II skeletal deformity.
Patients and Methods
The study population consists of 21 patients (11 females and 10 males, mean age 24.5±1.6 years) with a high angle Class II skeletal deformity who underwent Le Fort I maxillary impaction in conjunction with sagittal split osteotomy for mandibular advancement. The patients with a trauma, a congenital defect or a syndrome, and those who underwent soft tissue surgery (e.g. rhinoplasty) were excluded from the study. It was judged that an ethical approval was not required since the study involved retrospective analysis of the anonymized records.
All patients received pre- and post-surgical orthodontic treatment in the Department of Orthodontics, Faculty of Dentistry, Istanbul University, Istanbul. All patients were treated by Le Fort I maxillary impaction in conjunction with sagittal split osteotomy for mandibular advancement by the same surgeons in the Department of Maxillofacial Surgery, Okmeydani Dental Hospital, Istanbul.
In order to achieve a Le Fort I maxillary impaction, a horizontal incision was performed above the reflection of the sulcus. Subsequently, the nasal spine was subperiosteally degloved and the separation of the septum was accomplished by means of a guarded osteotome. The anterior nasal spine was left intact in all patients. A bilateral sagittal split osteotomy was also performed for mandibular advancement.
Lateral cephalograms were taken prior to surgery and 1.3±0.2 years postoperatively. All of the cephalograms were evaluated by the same examiner. In order to eliminate possible transient changes in the healing soft tissues, the radiographs were taken 1.3±0.2 years postoperatively and subsequent to the removal of orthodontic devices. All radiographs were taken while the teeth were in centric occlusion and the lips in repose.

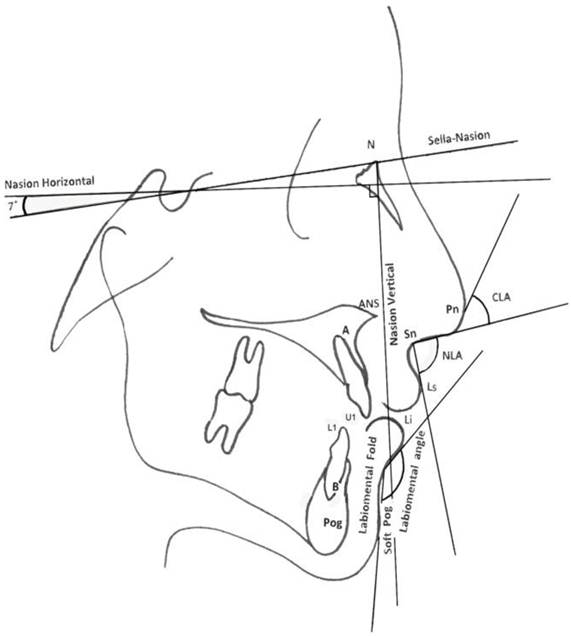

The pre- and postsurgical (T1 and T2) lateral cephalograms were manually traced by the same examiner. The cephalometric reference points were determined on an acetate tracing paper. The horizontal reference line was determined by drawing a line in 7 degrees to the sella-nasion (S-N). A perpendicular line to the horizontal reference line at the nasion point was determined as the vertical reference line (Figure 1). These reference lines were transferred to the lateral cephalogram taken postoperatively. In the pre- and postsurgical cephalograms, the hard and soft tissue landmarks were determined by measuring in millimeters their distances to the horizontal and vertical reference lines. The differences in the distances of the hard and soft tissue landmarks were recorded as the changes attributable to the surgery. The abbreviations of the soft and hard tissue landmarks have been listed in Table 1.
Descriptions of the abbreviations for the hard and the soft tissue landmarks.
|APOINTAP||Anteroposterior movement of the A-point,|
|ITIPAP||Anteroposterior movement of the upper incisal tip,|
|NASALAP||The nasal anteroposterior movement,|
|APOINTSI||Superoinferior movement of the A-point,|
|ITIPSI||Superoinferior movement of the upper incisal tip,|
|NASALSI||The nasal superoinferior movement,|
|CLA||Columella lobular angle,|
|L1TIPAP||Anteroposterior movement of the lower incisor,|
|L1TIPSI||Superoinferior movement of the lower incisor,|
|Labiomental angle||Lower lip (Li)-Labiomental fold-Soft tissue pogonion (Soft Pog) angle,|
|BPOINTSP||Superoinferior movement of the B-point,|
|BPOINTAP||Anteroposterior movement of the B-point.|
The length of S-N was measured on both the pre- and postsurgical cephalograms. Only were the cases with no change in the length of S-N included in the study. The nasion horizontal and vertical were chosen as the reference planes. A vertical line, which passed through the nasal tip, to the S-N was selected to evaluate the vertical and horizontal movements of the nasal tip.
The T2 cephalogram was superimposed on the T1 cephalogram by coinciding the cranial base which is a stable reference point. The movements in the anterior and superior directions were assigned positive values whereas the movements in the posterior and inferior directions were assigned negative values. The nasolabial angle (NLA) and the columella-lobular angle (CLA) were drawn to measure the soft tissue profile of the nose. The NLA was determined by intersecting the lines from subnasale point to both the columella point and the labrale superius point. The CLA was the angle that formed at the junction of the columella with the infratip lobule.
In order to assess the intraexaminer reliability, the tracing of the cephalograms were repeated by the same examiner 1 month later.
Statistical analysis was performed by means of a statistical software (NCSS-Number Cruncher Statistical System, Utah, USA, 2007). Wilcoxon test was performed to compare the pre- and post-surgical measurements. Pearson correlation test was performed to evaluate the relative changes between the skeletal, the dental and the facial soft tissues. A p value less than 0.05 was considered statistically significant.
Error of the method
The values for the re-traced films were analyzed through the Dahlberg Formula that is “Error of the method2 = Σd2 /2n”, where d is the difference between 2 measurements and n is the number of double determinations.36 The error of the method was no greater than 0.5 degree and millimeter.
Table 2 shows the averages of the changes observed in skeletal and facial soft tissues after surgery. The average amount of the maxillary impaction and the mandibular advancement were 3.9±0.7 mm and 5.88±6.4 mm, respectively.
There were statistically significant differences between the pre-and post-surgical measurements of APOINTAP (anteroposterior displacement of the A point, mean 3.25±4.9, p<0.05), ITIPAP (anteroposterior displacement of the upper incisor, mean 2.75±6.6, p<0.05), APOINTSI (superoinferior displacement of the A point, mean -2.00±6.3, p<0.05), ITIPSI (superoinferior displacement of the upper incisor, mean -2.00±8.7, p<0.05), NASALSI (superoinferior displacement of the nasal point, mean -1.25±6.6, p<0.01), BPOINTAP (anteroposterior displacement of the B point, mean -5.88±6.4, p<0.05) and the mentolabial angle (mean -10.38±6.7, p<0.05).
The averages of the pre- and post-surgical cephalometric measurements.
|NLA ( o )||104.75||16.9||103.0||11.9||-1.60||14.4||0.44|
|CLA ( o )||30.38||5.8||29.0||6.5||-1.38||6.1||0.67|
|Soft Pog Vert (mm)||103.88||12.9||101.13||10.9||-2.75||11.4||0.14|
(*) Statistically significant, (Wilcoxon test).
Relations between the Facial Soft Tissues and the Hard tissues
Significant correlations were found between the changes in NASALSI (superoinferior displacement of the nasal point) and NLA (r= 0.74, p<0.05); in ITIPAP (anteroposterior displacement of the upper incisor) and CLA (columella lobular angle) (r= -0.80, p<0.05); in Soft Pog Vert (vertical displacement of the soft tissue pogonion) and both BPOINTSP (superoinferior displacement of the B point) (r= 0.72, p<0.05) and LTIPSI (superoinferior displacement of the lower incisor) (r= 0.94, p<0.001) (Table 3).
Correlations between the skeletal and soft tissues.
|NLA ( o )||CLA ( o )||Soft Pog Vert|
|NASALSI (mm)||r 0.74|
|ITIPAP (mm)||r -0.80|
|BPOINTSP (mm)||r 0.72|
|LTIPSI (mm)||r 0.90|
(*) Statistically significant, (Pearson correlation test).
After the 1970s, bimaxillary osteotomy for severe maxillary deformities was performed flourishingly.1-33 Several studies were reported on the changes in nasal and soft tissue morphology after bimaxillary osteotomy.1,36,37,41 The morphologic changes in nasal and soft tissues have been assessed by cephalometrics1,2,8,15,20,38 stereophotogrammetry7 and three dimensional methods3,16,17,21,35.
In our study, the study sample presented a homogeneity since all patients were of Turkish origin with a skeletal high angle Class II discrepancy. All patients were treated by Le Fort I maxillary impaction in conjunction with sagittal split osteotomy for mandibular advancement surgery. Rigid fixation was performed in all patients.
A cephalometric evaluation of the craniofacial complex requires a reference plane in order to assess the location of various anatomic structures. For this purpose, the S-N 28 and the Frankfort horizontal planes have been used traditionally. 20 The S-N plane is the most useful reference plane to assess the changes induced by growth and/or treatment in an individual over time. The low variability in identification of the sella and nasion is an advantage for the use of this plane, as is the fact that sella turcica and nasion represent midsagittal structures.37 As an alternative reference plane, Legan et al.9,18,28 suggest the use of a line drawn through nasion at an angle of 7 o to the S-N line called a constructed horizontal, which tends to be parallel to true horizontal.
Although significant advances in the stability and predictability of maxillary surgery have been made over years, minimal attention has been paid on the effects of maxillary surgery on the nose and the facial soft tissues. According to Motta et al.3, the surface displacements indicate that the postoperative adaptations at different anatomic regions are significantly correlated. Bailey et al.23 compared the long-term soft tissue changes occurred in patients underwent either a bilateral sagittal split osteotomy or a Le Fort I osteotomy in conjunction with a bilateral sagittal split osteotomy to those who received only orthodontic treatment. In result, they concluded that although soft tissue changes did occur, there were no significant differences between the average soft tissue changes in the treatment groups. Misir et al.1 reported that there was no significant change in NLA and CLA after the maxillary intrusion alone or the maxillary intrusion with protraction. Mommaerts et al.32 mentioned that CLA increase after bimaxillary surgery. Gassman et al.38 declared that the removal of the anterior nasal spine after the maxillary operation was not significantly related to the changes in nasal morphology. Radney and Jacobs 39 reported that the NLA changed in response to the amount and the direction of the maxillary movement. In our study, there was no significant change in the NLA and CLA as a result of maxillary impaction. But a significant upper movement of the NASALSI was observed and significant correlations were found between the decreases in NASALSI and NLA. ITIPAP significantly decreased as a result of retrusive movement of upper incisor and it was significantly correlated with an insignificant decrease in CLA.
Vertical displacement of the soft tissue pogonion was significantly correlated with BPOINTSP and LTIPSI. Except for the lip parameters, Ravindranath et al.40 reported that the soft tissue cephalometric parameters showed minimal differences after mandibular advancement surgery. One year after mandibular advancement surgery, Almeida et al.41 found a significant correlation only between the lower incisor and lower lip. In this study, the anteroposterior position of the BPOINTAP was significantly protruded and mentolabial angle was significantly decreased as a result of mandibular advancement.
The maxillary impaction led to a nasal protraction, a retraction of the upper lip, which was related to the retraction of the upper incisors, and a superior movement of the soft tissues of the chin. Bilateral sagittal split osteotomy resulted in the counter clockwise rotation of the mandible. In light of these data, we conclude that Le Fort I maxillary impaction in conjunction with mandibular sagittal split osteotomy for mandibular advancement significantly affected the vertical and anteroposterior positions of the maxilla and the mandible, respectively. When performed in combination, these surgical techniques can efficiently alter the position of upper incisor and the nasal position in both vertical and anteroposterior directions. Bimaxillary orthognathic surgery seems to be an efficient method for obtaining satisfactory results in the appearance of the soft, the dental and the skeletal tissues associated with the facial profile in patients with high angle Class II skeletal deformity.
