Int J Med Sci 2008; 5(3):143-151. doi:10.7150/ijms.5.143 This issue Cite

Research Paper

OXIDATIVE PHOSPHORYLATION: Kinetic and Thermodynamic Correlation between Electron Flow, Proton Translocation, Oxygen Consumption and ATP Synthesis under Close to In Vivo Concentrations of Oxygen

Baltazar D. Reynafarje1, Jorge Ferreira2 Corresponding address

1. Johns Hopkins University School of Medicine, Department of Biological Chemistry, Baltimore, Maryland 21205, USA.
2. Programa de Farmacología Molecular y Clínica, Facultad de Medicina, Universidad de Chile, Independencia 1027, Casilla 70000 Santiago-7, Chile.

Citation:
Reynafarje BD, Ferreira J. OXIDATIVE PHOSPHORYLATION: Kinetic and Thermodynamic Correlation between Electron Flow, Proton Translocation, Oxygen Consumption and ATP Synthesis under Close to In Vivo Concentrations of Oxygen. Int J Med Sci 2008; 5(3):143-151. doi:10.7150/ijms.5.143. https://www.medsci.org/v05p0143.htm
Other styles

File import instruction

Abstract

For the fist time the mitochondrial process of oxidative phosphorylation has been studied by determining the extent and initial rates of electron flow, H+ translocation, O2 uptake and ATP synthesis under close to in vivo concentrations of oxygen. The following novel results were obtained. 1) The real rates of O2 uptake and ATP synthesis are orders of magnitude higher than those observed under state-3 metabolic conditions. 2) The phosphorylative process of ATP synthesis is neither kinetically nor thermodynamically related to the respiratory process of H+ ejection. 3) The ATP/O stoichiometry is not constant but varies depending on all, the redox potential (ΔEh), the degree of reduction of the membrane and the relative concentrations of O2, ADP, and protein. 4) The free energy of electron flow is not only used for the enzymatic binding and release of substrates and products but fundamentally for the actual synthesis of ATP from ADP and Pi. 5) The concentration of ADP that produces half-maximal responses of ATP synthesis (EC50) is not constant but varies depending on both ΔEh and O2 concentration. 6) The process of ATP synthesis exhibits strong positive catalytic cooperativity with a Hill coefficient, n, of ~3.0. It is concluded that the most important factor in determining the extent and rates of ATP synthesis is not the level of ADP or the proton gradient but the concentration of O2 and the state of reduction and/or protonation of the membrane.

Keywords: Energy transduction, proton gradient, free energy of electron flow and ATP synthesis

Introduction

The central and most important aspect of the mitochondrial process of energy transduction in aerobic organisms is the mechanism by which the free energy of respiration is transformed into the chemical of ATP. Since the formulation of the chemiosmotic hypothesis [1], it is firmly believed that the processes of electron flow, H+ ejection, O2 uptake and ATP synthesis are always kinetically and thermodynamically related. Thus, it is common practice to evaluate the number of molecules of ATP formed per atom of oxygen consumed by simply evaluating the H+/O ratio [2], or by solely determining the amount of O2 consumed under state-3 metabolic conditions [3]. In this context, it is also stated that (a) “electrons do not flow from fuel molecules to O2 unless ATP needs to be synthesized” [4], and (b) the respiratory energy of electron flow is only used to bind ADP and Pi and to release the spontaneously formed ATP from the catalytic sites of the synthase [5-8]. It is also asserted that the control of electron flux by O2 is minimal and that in a way not specified the phosphorylative process of ATP synthesis controls the flow of electrons through the mitochondrial respiratory chain [9]. We provide here evidence that the process of ATP synthesis does not depend on the vectorial ejection of H+ and the magnitude of the proton gradient, but on the net flow of electrons through the entire respiratory chain. Consequently, it is not sufficient to evaluate the energy metabolism of the cell by only determining the H+/O ratio in oxygen-pulse experiments [2] or the amount of O2 consumed under state-3 metabolic conditions [3]. It is postulated that the form of energy directly involved in the process of ATP synthesis is not the chemical (ΔpH) but the electrical (ΔΨ) component of the protonmotive force (Δp), and that the most important factor in controlling this process is O2 not ADP.

Material and Methods

Source of Enzymes, Chemicals and Materials

Mitochondria and sub-mitochondrial particles from rat liver (RLM and SMP) were prepared as previously described [10]. Horse-heart-cytochrome c type IV, ATP, ADP, NADH and succinate were products of Sigma Aldrich Co. The “ATP Monitoring Reagent” (a mixture of luciferin and luciferase) was from Bio Orbit. The reagents used to determine the extent of ATP synthesis using the HPLP procedure [11] were all of grade purity. The luminometer was a product of LKB and the fast oxygen electrode, constructed and used as previously described [12, 13], had a 90% response time of about 10 milliseconds. The air-tight closed reaction chamber of the luminometer was fitted with the O2 electrode and its reference. The output of both the oxygen electrode and luminometer were suitably modified by changing the amperage and/or the voltage and fed into a KIPP and ZONEN multi-channel recorder usually running at a chart speed of 120 cm/min. The contents of the reaction chamber were stirred with a magnetic bar rotating at about 1000 rpm. The standard reaction medium (1.0 ml of final volume at 25oC) contained 200 mM sucrose, 50 mM KCl, 10 mM Na-KPi, pH 7.05, 2 mM MgSO4, 6.0 μM cytochrome c, and 50 μl of a dilution of luciferin/luciferase mixture in 5.0 ml of water. The presence of cytochrome c in the standard medium was necessary to replace the cytochrome c lost during the preparation of SMP. The enzymes were suspended in the reaction mixture and the uptake of O2 and synthesis of ATP determined as described bellow.

Methods to determine the extent and initial rates of ATP synthesis

The process of ATP synthesis was determined using both a luciferase procedure and a high-pressure column procedure (HPLC). The latter was used to insure that in consecutive reactions the disappearance of the previously formed ATP is due to complete hydrolysis rather than to a reduction of O2 to levels that are much below the Km of the luciferase for O2 [14,15]. True initial rates of ATP synthesis and O2 consumption were simultaneously determined as follows. First, aliquots of either SMP or mitochondria were injected into the closed reaction chamber of the luminometer filled with the standard medium already supplemented with a respiratory substrate. Second, the reaction mixture was incubated for several minutes until every trace of O2 disappeared from the medium. Third, 50 μl of luciferin/luciferase mixture was added and the system further incubated until every trace of both O2 and ATP disappeared from the medium as detected by both the luciferase reaction and the O2 electrode. Fourth, 1 to 10 μl of standard medium containing from 2 to 400 nmols of ADP were added into the cell and the system again incubated until the O2 and ATP (contaminating the sample of ADP) added together with the sample of ADP disappeared from the medium. Fifth, the process of oxidative phosphorylation was initiated by injecting from 0.2 to 20 μl of air- or O2-saturated medium containing from 0.115 to 30 μM O2 (0.23 to 60 nmols O) and both ATP synthesis (light emission) and O2 consumption were simultaneously recorded at 120 cm/min.

The amount of O2 consumed during the net synthesis of ATP was calculated by subtracting the amount of O2 consumed until the net synthesis of ATP ceased from the amount of O2 added at zero time. The amount of ATP formed at the moment the net synthesis of ATP ceases was determined by measuring the distance between the base line and the top of the trace (see Figs. 1b and 2). This distance was then compared with standard curves constructed by adding different levels of ATP to air-saturated mediums in the presence and absence of respiratory substrates [16]. The impairing accumulation of oxyluciferin (a product of the luciferase reaction) was prevented by limiting the amount of ATP formed to a maximum of 25 μM [16, 17].

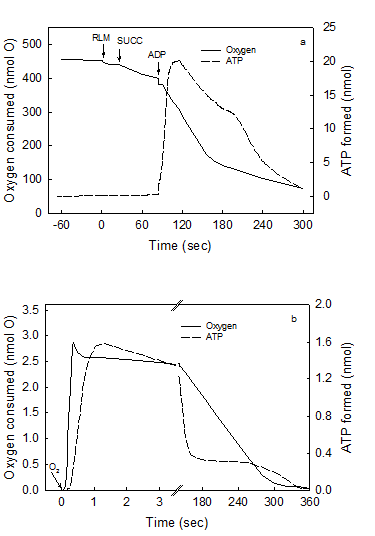

 Figure 1

Maximal rates of O2 consumption and ATP synthesis can only occur in reactions catalyzed by a fully reduced mitochondrial membrane. The air-saturated standard reaction medium was that described under Experimental Procedures, with 230 μM O2, 10 mM succinate and 0.15 mg of RLM protein. In the first portion of this representative experiment (Figs. 1a), the reaction was initiated by adding 300 nmols of ADP and the extent and rates of O2 uptake and ATP synthesis simultaneously recorded for 5 min. The reaction was let to continue, unrecorded, for at least 25 min until both O2 and ATP completely disappeared from the medium (see Experimental procedures). In the second portion of the experiment (Fig. 1b), the reaction was initiated by adding 4.6 nmols of O (2.3 μM O2) to the now fully reduced suspension of mitochondria already in the presence of 300 nmols of ADP. This is a representative experiment of at least four independent determinations.

Int J Med Sci Image

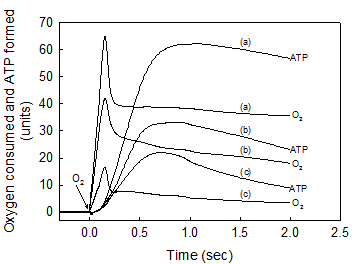

 Figure 2

A strict kinetic and stoichiometric correlation between ATP synthesis and O2 uptake only exists during the initial phase of the entire process of oxidative phosphorylation. The standard reaction medium contained 0.02 mg of SMP protein supplemented with 10 mM succinate and 50 μM ADP. After the SMP consumed all the O2 and there was no trace of ATP left in the medium (see Fig. 1b) the reactions were initiated by consecutively adding 18.4 nmols of O in (a), 2.76 in (b) and 0.92 in (c). The time course of both O2 consumption and ATP synthesis were simultaneously recorded during the first 2 seconds of the process of oxidative phosphorylation. Each unit of O2 uptake in the y-axis represents 0.036 nmols of O for the additions of 0.92 and 2.76 nmols of O, and 0.197 nmols of O for the addition of 18.4 nmols of O. Each unit of ATP synthesis represents 0.03, 0.06 and 0.2 nmols of ATP for the additions of 0.92, 2.76 and 18.4 nmols of O, respectively. Traces shown are representative of at least three independent determinations of each condition.

Int J Med Sci Image

The initial rates of ATP synthesis were determined within the first 500 ms by measuring the steepest portion of the trace. The ATP/O stoichiometry was evaluated during the phase of oxidative phosphorylation in which the processes of ATP synthesis and O2 consumption were kinetically and thermodynamically related (see Figs. 1b and 2).

The time-courses of O2 consumption and H+ translocation were simultaneously determined as previously described [18, 19]. Changes in the redox state of cytochrome aa3 and the related rates of O2 consumption were determined during the first 500 ms of reactions initiated by adding O2 to fully reduced samples of RLM and purified cytochrome c oxidase [13, 20]. The degree of cooperativity between catalytic sites of the synthase was determined at different ΔEh in the presence of different concentrations of O2 and ADP using the following form of Hill equation:

log (v/Vmax-v) = n log [ADP] – n log EC50  (1)

in which v represents the fractional velocity of ATP synthesis. The value of v can range from zero (in the absence of ADP) to 1.0, the Vmax obtained when the fully reduced membrane is in the presence of optimal concentrations of O2, ADP and protein (see below). The Hill coefficient, n, or degree of cooperativity between catalytic sites of the synthase, was determined by measuring either the rates of synthesis during the steepest portion of the sigmoidal curve or the amount of ATP formed at the moment the net synthesis of ATP ceases. The concentration of ADP that produces half-maximal responses is evaluated by determining either half-maximal rates (EC50) or half-maximal extents (K0.5) of ATP synthesis.

Results and Discussion

I. Optimal states of reduction and/or protonation of the mitochondrial membrane are essential for the most efficient processes of oxidative phosphorylation

Figure 1 (a and b) show the simultaneously and continuously recorded time courses of O2 uptake and ATP synthesis in a reaction catalyzed by RLM under two different states of reduction and/or protonation. In Fig.1a the process of oxidative phosphorylation is initiated by adding 300 nmols ADP to mitochondria respiring in state-4 in the presence of ~230 μM O2 (classic conditions). After 5 min of reaction, the process of oxidative phosphorylation is let to continue for at least 25 min until O2 and ATP completely disappear from the medium as detected by both the oxygen-electrode and the luciferase reaction (see Methods and Procedures). A non-luminescent procedure was also utilized to insure that the disappearance of ATP was not only due to a level of O2 that is below the KM of the luciferase. When both O2 and ATP really disappeared from the medium a pulse of only 2.3 μM O2 was injected and the time course of the reaction followed at much higher speeds until a second period of anaerobiosis was attained (Fig. 1b). The data show that the process of oxidative phosphorylation has the following novel characteristics. First, even in the presence of in vivo levels of O2 (<46 μM) [21, 22], the rates of ATP synthesis and O2 uptake are orders of magnitude higher in reactions catalyzed by fully reduced RLM than in those catalyzed by mostly oxidized RLM in the presence of ~230 μM O2 or state-3 [23]. Thus, although the process of oxidative phosphorylation is oxygen dependent throughout the physiological range of oxygen tensions (near zero to 230 μM or 150 torr) [24, 25]. Data presented in Fig. 1b show that in the presence of only 2.3 μM O2 the rate of ATP synthesis (~1,700 nmols · min-1 · mg protein-1) is more than 3fold higher than in the presence of ~230 μM (500 nmols · min-1 · mg protein-1 in Fig. 1a). Under state-3 metabolic conditions, the rates of O2 uptake and ATP synthesis are mostly impaired because the reaction is initiated by adding ADP to a mitochondrial membrane that in state-4 is charged with reactive oxygen species (ROS) and nearly devoid of labile protons [26, 27]. This type of impairment is only “partially reversed by the addition of phosphate and phosphate acceptor” [3]. Distinctly, when the reaction is initiated by adding O2 to either, mitochondria, SMP or intact cells [32] devoid of ROS and fully reduced and/or protonated the steady state rates of O2 uptake and ATP synthesis take place under optimal conditions. In fact, the purpose of the warm-up period that athletes perform just before enter a prolonged physical competition is to get ride of reactive oxygen species at the same time that the mitochondrial membrane attains a state of optimal reduction. Second, only a fraction of the O2 consumed in the entire process of oxidative phosphorylation is actually utilized in kinetic and thermodynamic correlation with the extremely fast phase of ATP synthesis. In fact, Fig. 1b shows that from a total of 4.6 nmols of O consumed in the entire reaction only 2.5 nmols are utilized during the steady-state synthesis of 2.7 nmols of ATP. In Fig. 1a the fraction of O2 consumed in direct correlation with the net synthesis of ATP only occurs during the very initial and elusive portion of state-3 that passes undetected when the O2 trace is greatly condensed to show the entire time course of the reaction. Third, most of the O2 consumed in the entire process of oxidative phosphorylation occurs during the respiratory period in which the rates of O2 uptake are very low and the previously formed ATP is hydrolyzed in a process that coincides with the re-reduction (not the oxidation) of cytochrome aa3 (Figs. 1 and 2). In conclusion the result of this experiment demonstrates that a strict kinetic and thermodynamic correlation between O2 consumption and ATP synthesis only occur when the mitochondrial membrane is maximally reduced and/or protonated.

II. The rates of O2 consumption and ATP synthesis are kinetically and thermodynamically related only during the “active” or fast phase of the respiratory process

It is firmly believed that, regardless of the magnitude of the ΔEh and the concentration of ADP, the extent of ATP synthesis depends directly on the amount of O2 consumed in the entire process of oxidative phosphorylation. The results presented in Fig. 2 and Table 1 show, however, that the net synthesis of ATP only occurs during the “active” respiratory process in which the flow of electrons [28, 29] and the reduction of O2 to water [13, 30] take place at extremely fast rates. Note that in spite of the very large difference in the amount of O2 totally consumed (from 0.92 to 18.4 nmols O) only a fraction of this O2 (from 0.65 to 9.93 nmols O) is directly utilized in the net synthesis of ATP (0.65 to 12.27 nmols). Note also that not only the extent but also the initial rates of ATP synthesis (72.9, 14.3 and 4.2 μmol · min-1 · mg protein-1) depend on the amount of O2 initially consumed. It is mechanistically significant that even in the presence of extremely low levels of O2, the ATP/O stoichiometry is a direct function of O2 concentration (see Table 1). These findings are supported by observations that both humans and guinea pigs native to high altitude can perform the same type of work or synthesize the same amount of ATP utilizing less O2 than their counterparts from sea level [31, 32]. It must be emphasized that only under absolute resting conditions, i.e. under state-1 metabolic conditions [3], cells operate under steady-state conditions with a constant and unchanged supply of substrates, O2, and ADP. Under in vivo “active” conditions, however, the extent and rates of ATP synthesis constantly change, depending on the availability of O2 that decreases even along the path of a single capillary. In summary, these results provide evidence that, a) the most important factor in controlling the rate of ATP synthesis is not the level of ADP but rather the level of O2 and, b) the respiratory processes of electron flow and O2 reduction control the phosphorylative process of ATP synthesis and not vice versa as is currently believed [4, 9].

 Table 1

Oxygen dependence of the oxidative phosphorylation process of ATP synthesis.

O2 totally Consumed (nmols O)O2 initially Consumed (nmols O)ATP formed (nmols)Rates of ATP Synthesis (μmols·min-1·mg -1)ATP/O Stoichiometry
0.92±0.030.65±0.020.65±0.024.2±0.11.00±0.01
2.76±0.081.75±0.051.97±0.0814.3±0.21.13±0.01
18.4±0.59.93±0.1312.27±0.1872.9±1.41.24±0.02

Note: Experimental conditions were as those described for Fig. 2. The amounts of ATP formed were determined at the moment in which both the net synthesis of ATP and the fast phase of O2 consumption ceased. The initial rates of ATP synthesis were determined within the first 300 ms of reaction. Values are arithmetical means ± SDn-1 of at least three independents determinations

III. The phosphorylative process of ATP synthesis is neither kinetically nor thermodynamically related to the respiratory process of H+ ejection

In accordance with the chemiosmotic hypothesis [1] it is firmly believed that the processes of electron flow, H+ ejection, O2 consumption and ATP synthesis are all kinetically and thermodynamically related. Consequently, the extent of ATP synthesis is usually determined by measuring either the H+/O ratio [2] or the amount of O2 consumed under state-3 metabolic conditions [3]. Until now, however, no attention has been paid to the fact that all, the flow of electrons, the consumption of O2 and the over all process of oxidative phosphorylation are polyphasic in nature [13, 28, 30]. In fact, data compiled in Fig. 3 show that the vectorial process of H+ ejection [18, 19], is neither kinetically nor thermodynamically related to the flow of electrons, the net oxidation of cytochrome aa3, the consumption of O2 and the net synthesis of ATP. Note that the net ejection of H+, as determined under optimal oxygen-pulse conditions [18, 19, 33], only begins to occur during the respiratory process in which the rates of O2 consumption are very slow and the cytochrome aa3 undergoes net reduction. The lack of stoichiometric correlation between the vectorial ejection of H+ and the processes of H+ uptake, O2 consumption and ATP synthesis has also been demonstrated in reactions catalyzed by both paracoccus denitrificans and purified cytochrome aa3 [30, 34]. These results show that the most important factor in controlling the synthesis of ATP is not ADP, but O2 and that the proton gradient generated by the respiratory process of H+ ejection is not directly related to the actual process of ATP synthesis.

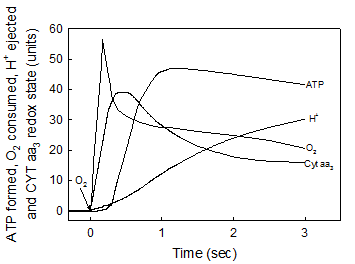

 Figure 3

The vectorial ejection of H+ is neither kinetically not stoichiometrically related to the processes of cytochrome aa3 oxidation, O2 uptake and ATP synthesis. The basic medium was identical to that described under Experimental Procedures. All the reactions were performed in oxygen-pulse experiments by adding O2 to fully reduced samples of RLM. The uptake of O2 and the changes in the redox state of cytochrome aa3 were simultaneously initiated by adding 9.2 nmols of O to a fully reduced suspension of 3.5 mg of mitochondrial protein. Every unit in the y-axis represents 0.24 nmols of O and a ΔA of 1.2 x 10-4 at 605-630 nm. The ejection of vectorial H+ was determined by adding 55 nmols of O to a fully reduced sample of 4 mg of mitochondrial protein. Every unit in the y-axis represents 3.37 nmols of H+ [18, 19]. The synthesis of ATP was initiated by adding 4.6 nmols of O, like in Fig. 1b. Every unit in the y-axis represents 0.036 nmols of ATP. Traces correspond to representative experiments of at least three independent determinations.

Int J Med Sci Image

IV. The ATP/O stoichiometry is a function of all, the ΔEh, the redox state of the membrane and the levels of O2, ADP and protein

The consensus is that the ATP/O stoichiometry is a constant the value of which only depends on the magnitude of the ΔEh. The results presented in Fig. 4 show, however, that under close to in vivo concentrations of O2, i.e. below 36 μM O2 or 23 torr [21, 22], the number of molecules of ATP formed per atom of O2 consumed varies depending on all, the ΔEh and the relative concentrations of ADP, O2 and protein. In fact, Fig. 4a shows that in the presence of NADH (a high ΔEh) and 100 μM ADP, the ATP/O ratio increases from ~1.0 to a maximum of 3.39 when the concentration of O2 increases from 0.23 to 15.0 μM. At the same ΔEh but in the presence of 25 μM ADP, the ATP/O ratio increases from 0.1 to only 1.87. In the same range of O2 concentrations but in the presence of cytochrome c (low ΔEh) and 100 μM ADP the ATP/O ratio remains close to the maximum of 1.33. In the presence of 25 μM ADP, however, the ATP/O ratio increases from near zero to only 0.126. Figure 4b shows that not only the total amount of ATP formed (Fig. 4a) but also the initial rates of ATP synthesis vary intricately depending on all, ΔEh, O2 and ADP. Thus, in the presence of NADH and 100 μM ADP the initial rates of ATP synthesis increase from near zero to 214 μmol · min-1 · mg prtoein-1 when the level of O2 increases from 0.92 to 23 nmols O (0.46 to 11.5 μM). In the presence of NADH and only 25 μM ADP the rates increase from less than 1.0 to only 60.7 μmol · min-1 · mg prtoein-1. In the same range of O2 concentrations (0.46 to 11.5 μM), but in the presence of cytochrome c and 100 μM ADP the rates of ATP synthesis increase from less than 3.78 to a near maximum of 61.4 μmol · min-1 · mg protein-1. Under the same conditions but in the presence of only 25 μM ADP the rates increase from near zero to only 12.3 μmol · min-1 · mg protein-1. Figure 4c show that the net synthesis of ATP depends not only on the ΔEh and the initial concentrations of O2 and ADP but on the concentration of protein as well. Unexpectedly however, the data show that the extent of ATP synthesis decreases as the concentration of protein increases. This odd effect of protein is explained considering that the effective number of collisions between O2 and cytochrome aa3 depends directly on the molar ratio between O2 and protein. Thus, when the concentration of protein is increased maintaining constant the concentration of O2, the energy directly involved in the synthesis of ATP is substantially reduced. Indeed, the real ATP/O stoichiometry is not a constant but varies exquisitely depending on a large array of factors, amongst which, the most important is the level of oxygen. The reproducibility of the data was confirmed in more than 5 independent experiments by determining the arithmetical means ± SDn-1 using a fixed parameter and changing the rest. The “P” value was < 0.05 for most levels of O2, ADP and protein.

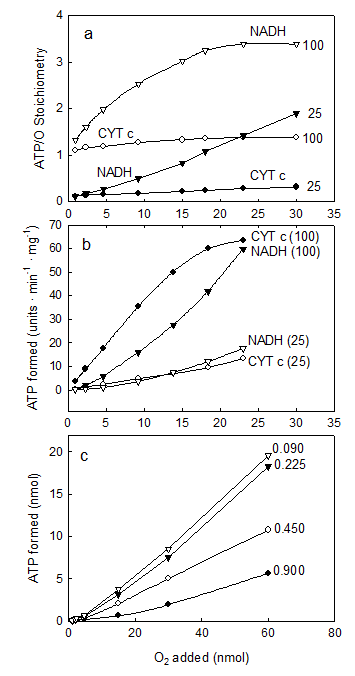

 Figure 4

The ATP/O stoichiometry depends on all, the ΔEh and the relative concentrations of ADP, O2 and protein. The reaction mixtures were as described under Experimental Procedures. In Fig. 4 (a and b), the reactions were initiated by adding from 0.92 to 30.0 nmols of O to fully reduced suspensions of 0.009 mg of SMP supplemented with either 5 mM NADH or cytochrome c in the presence of 100 and 25 μM ADP. The ATP/O ratio in Fig. 4a was determined at the moment in which the net synthesis of ATP ceased and the fast initial phase of O2 consumption was abruptly interrupted (see Figs. 1 and 2). The arithmetical means ± SDn-1 of at least 5 independents determinations performed at O2 concentrations of 5, 10 and 15 μM had a statistical significance “P” < 0.05. Error bars were eliminated to improve the Fig. In Fig. 4b, the rates of ATP synthesis were determined during the first 500 ms of reaction by measuring the steepest portion of the traces. Each unit represents 1 μmole in the presence of cytochrome c and 3.57 μmole in the presence of NADH. In Fig. 4c the extent of ATP synthesis was determined in reactions initiated by adding from 0.46 to 60 nmols O to anaerobic and fully reduced suspensions of 0.09, 0.225, 0.45 and 0.9 mg of SMP protein in the presence of 100 μM ADP and 5.0 mM NADH.

Int J Med Sci Image

V. The free energy of electron flow is essential not only for the binding or release of substrates and products but also for the synthesis of ATP from ADP and Pi

It was impressibly asserted that the covalent structure of ATP can be readily formed in the presence or absence of substrates or of oxidation inhibitors [5-8]. Figure 5 show, however, that even in the presence of very low levels of ATP and high of O2, Pi and ADP (optimal conditions for a spontaneously synthesis of ATP during an equilibrium period) the actual synthesis does not occur if there is no net flow of electrons. Instead, the hydrolysis of a miniscule amount of ATP (a contaminant of the sample of ADP) takes precedence over the actual synthesis of ATP, a process that continuous until a seemingly endless period of equilibrium is attained in which the rates of synthesis and hydrolysis of ATP are exactly the same [16]. This period of equilibrium is only interrupted when succinate is added and the free energy of electron flow brings about the actual synthesis of ATP from the ADP and Pi already bound to the membrane. It is evident that, when the mitochondria are incubated “with Pi labeled with 18O and 32P and unlabeled ATP in the presence or absence of substrates or of oxidation inhibitors” [8], 18O is incorporated into Pi during the period of equilibrium in which the synthesis and hydrolysis of ATP are equal. What is remarkable in Fig. 5 is that, even in the presence of very high levels of O2 (~230 μM) and ADP (400 μM) the initial rate of ATP synthesis is only 12.37 nmols · min-1 · mg-1, i.e., ~103 times lower than in Figs. 1 and 2. Obviously, under state-3 metabolic conditions the mitochondrial membrane is not under optimal conditions, most likely due to the impairing effect of reactive oxygen species (see above). Indeed, these results demonstrate that the free energy of electron flow is essential not only for the binding and release of substrates and products to and from the ATP synthase but most importantly for the synthesis of ATP from ADP and Pi.

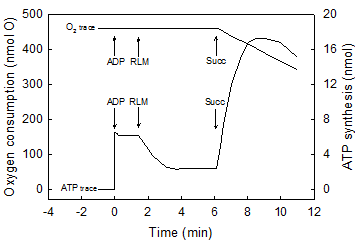

 Figure 5

Demonstration that the free energy of electron flow is indispensable for the actual synthesis of ATP from ADP and Pi. The medium was that described under Experimental Procedures. The experiment was initiated by adding 400 nmols of ADP and 6.3 nmols of ATP (as contaminant of ADP) to an air-saturated medium free from RLM and succinate. After 1.5 min of incubation, 1.0 mg of RLM protein was added to initiate the hydrolysis of the 6.3 nmols of ATP that proceed without the uptake O2 until a seemingly endless state of equilibrium was attained. This period of equilibrium was only interrupted when either succinate (10 Mm) was added to initiate the simultaneous processes of O2 uptake and ATP synthesis or the concentration of O2 was near zero.

Int J Med Sci Image

VI. The concentration of ADP required for half maximal response of ATP synthesis is an inverse function of both ΔEh and O2 concentration

For the first time evidence is here provided that, contrary to what is generally believed, the concentration ADP at which the rate of ATP synthesis is half its maximal value is not constant but varies subtly depending on both ΔEh and O2 concentration. Unlike the hyperbolical hydrolysis of ATP that is entirely independent of ΔEh and O2 [16], Fig. 6a show that for same concentration of ADP the initial rates of ATP synthesis increase directly depending on both ΔEh and O2 concentration [35]. Figure 6b demonstrates that the concentration of ADP required for half maximal rates of ATP synthesis (EC50) is an inverse function of ΔEh and O2, decreasing from 76.0 to 36.7 μM when both the concentration of O2 and the magnitude of ΔEh increase. It is remarkable that the EC50 for ADP is the same (41.0 μM) whether in the presence of cytochrome c or NADH only when the concentration of O2 in the presence of cytochrome c is 5fold higher than in the presence of NADH. The Hill coefficient, n, on the other hand, has a constant value of ~3.0 that is entirely independent of ΔEh and O2 concentration. These results contrast assertions that the sigmoidal synthesis of ATP and the hyperbolical hydrolysis of ATP are mechanistically identical [7].

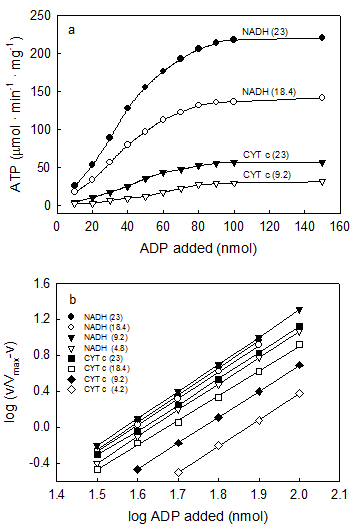

 Figure 6

The concentration of ADP at which the rate of ATP synthesis is half its maximal value is regulated by both O2 and ΔEh. Reactions were initiated by adding from 4.6 to 23.0 nmols O (figures in parenthesis) to anaerobic and fully reduced samples of 0.01 mg of SMP in the presence of either 5.0 mM NADH or 100 μM cytochrome c and the indicated amount of ADP (x-axis). The same type of sigmoidal curve was obtained by comparing the amount of ADP initially present with either the initial rates of ATP synthesis (Fig. 6a) or the maximal amounts of ATP formed. Figure 6b shows that the Hill coefficient, n (~3.) is a constant that is independent of ΔEh or amount of O2 added. The concentration of ADP that produces half-maximal rates (EC50) or extents (K0.5) of ATP synthesis can be calculated from equation 1 when the log (v/Vmax-v) = 0.

Int J Med Sci Image

Conclusions

  1. The phosphorylation of ADP and the net synthesis of ATP cannot occur in the absence of a respiratory substrate and the net flow of electrons (ΔΨ) toward oxygen.
  2. The synthesis of ATP from ADP and Pi can efficiently take place in the absence of a proton gradient and the chemical component (ΔpH) of the protonmotive force, Δp.
  3. The level of O2, not the level of ADP, is the most important factor in determining the rate of oxidative phosphorylation.
  4. The ATP/O stoichiometry is not constant but varies depending on all, the (ΔEh), the redox state of the membrane and the relative levels of ADP, O2 and protein.
  5. The concentration of ADP at which the extent and rates of ATP synthesis is half maximal is not constant but decreases as the ΔEh and the concentration of O2 increase.
  6. The energy metabolism of the cell cannot be adequately evaluated by determining the mitochondrial H+/O ratio or the amount of O2 consumed under steady-3 metabolic conditions.

Acknowledgements

This research was supported in part by FONDECYT grant Nº 1061086. The authors express also their sincere gratitude to Dr. Peter L. Pedersen, Department of Biological Chemistry Johns Hopkins University, for providing reagents and sub-mitochondrial particles and to Dr. Sally H. Cavanaugh, Department of research York Hospital, PA, for allowing the use of equipment.

Conflict of interest

The authors have declared that no conflict of interest exists.

References

1. Mitchell P. Coupling of phosphorylation to electron and hydrogen transfer by a chemiosmotic type of mechanism. Nature. 1961;191:144-8

2. Brand MD. The stoichiometry of proton pumping and ATP synthesis in mitochondria. The Biochemist. 1994;16:20-4

3. Chance B, Williams GR. The Respiratory Chain and Oxidative Phosphorylation. Adv Enzymol Relat Subj Biochem. 1956;17:65-134

4. Berg JM, Tymoczko JL, Stryer L. The rate of oxidative phosphorylation is determined by the need for ATP. Biochemistry, 5th Edition. New York, USA: Freeman WH & Co. 2002:552

5. Boyer PD, Cross RL, Momsen W. A new concept for energy coupling in oxidative phosphorylation based on a molecular explanation of the oxygen exchange reactions. Proc Natl Acad Sci USA. 1973;70:2837-39

6. Kayalar C, Rosing J, Boyer PD. An alternating site sequence for oxidative phosphorylation suggested by measurement of substrate binding patterns and exchange reaction inhibitions. J Biol Chem. 1977;252:2486-91

7. Milgrom YM, Cross RL. Nucleotide-depleted beef heart F1-ATPase exhibits strong positive catalytic cooperativity. J Biol Chem. 1997;272:32211-14

8. Boyer PD. A research journey with ATP synthase. J Biol Chem. 2002;277:39045-61

9. Brand MD, Murphy MP. Control of electron flux through the respiratory chain in mitochondria and cells. Biol Rev Camb Philos Soc. 1987;62:141-93

10. Pedersen PL, Greenwalt JW, Reynafarje BD, Hullihen J, Decker GL, Sopper JW, Bustamante E. Preparation and Characterization of Mitochondria and Submitochondrial Particles of Rat Liver and Liver-Derived Tissues. Methods Cell Biol. 1978;20:411-81

11. Napolitano MJ, Shain DH. Quantitating adenylate nucleotides in diverse organisms. J Biochem Biophys Methods. 2005;63:69-77

12. Davies PW, Grenell RG. Metabolism and function in the cerebral cortex under local perfusion, with the aid of an oxygen cathode for surface measurement of cortical oxygen consumption. J Neurophysiol. 1962;25:651-83

13. Reynafarje BD, Davies WP. The polyphasic nature of the respiratory process at the mitochondrial level. Am J Physiol. 1990;258:C504-C511

14. Timmins GS, Robb FJ, Wilmot CM, Jackson SK, Swartz HM. Firefly flashing is controlled by gating oxygen to light-emitting cells. J Exp Biol. 2001;204:2795-801

15. Bourgois JJ, Slues FE, Baguet F, Mallefet J. Kinetics of light emission and oxygen consumption by bioluminescent bacteria. J Bioenerg Biomembr. 2001;33:353-63

16. Reynafarje BD, Pedersen PL. ATP synthase. Conditions under which all catalytic sites of the F1 moiety are kinetically equivalent in hydrolyzing ATP. J Biol Chem. 1996;271:32546-50

17. Lemasters JJ, Hackenbrock CR. Continuous measurement of adenosine triphosphate with firefly luciferase luminescence. In: (ed.) Parker L, Fleischer S. Biomembranes. New York: Academic Press. 1997:703-16

18. Mitchell P, Moyle J. Respiration-driven proton translocation in rat liver mitochondria. Biochem J. 1967;105:1147-1162

19. Brand MD, Reynafarje BD, Lehninger AL. Stoichiometric relationship between energy-dependent proton ejection and electron transport in mitochondria. Proc Natl Acad Sci USA. 1976;73:437-441

20. Reynafarje BD. The polyphasic reduction of oxygen to water by purified cytochrome c oxidase. Biochem Biophy Res Commun. 1991;176:150-6

21. Ganong FW. Gas Transport between the Lungs & the Tissues. In: (ed.) Appleton & Lange. Physiology, 6th ed. Norwalk, Connecticut. 1993:604-5

22. Wittenberg BA, Wittenberg JB. Oxygen pressure gradients in isolated cardiac myocytes. J Biol Chem. 1985;260:6548-54

23. Chance B, Williams GR. Respiratory enzymes in oxidative phosphorylation. I. Kinetics of oxygen utilization. J Biol Chem. 1955;217:383-93

24. Wilson DF, Owen CS, Holian A. Control of mitochondrial respiration: a quantitative evaluation of the roles of cytochrome c and oxygen. Arch Biochem Biophys. 1977;182:749-62

25. Erecinska M, Wilson DF. Regulation of cellular energy metabolism. J Membr Biol. 1982;70:1-14

26. Le SB, Hailer MK, Buhrow S, Wang Q, Fatten K, Pediaditakis P, Bible KC, Lewis LD, Sausville EA, Pang YP, Ames MM, Lemasters JJ, Holmuhamedov EL. Inhibition of mitochondrial respiration as a source of adaphostin-induced reactive oxygen species and cytotoxicity. J Biol Chem. 2007;282:8860-72

27. Kannt A, Lancaster CR, Mitchell HJ. The role of electrostatic interactions for cytochrome c oxidase function. J Bioenerg Biomembr. 1998;30:81-7

28. Hill BC, Greenwood C. The reaction of fully reduced cytochrome c oxidase with oxygen studied by flow-flash spectrophotometry at room temperature. Evidence for new pathways of electron transfer. Biochem J. 1984;218:913-21

29. Hill BC. The reaction of the electrostatic cytochrome c-cytochrome oxidase complex with oxygen. J Biol Chem. 1991;266:2219-26

30. Reynafarje BD, Ferreira J. Cytochrome c oxidase: the mechanistic significance of structural H+ in energy transduction. J Bioenerg Biomembr. 2002;34:259-67

31. Reynafarje BD. Work and Oxygen Debt at Altitude-Biochemical Aspects. Helfferich C, ed. FT Wainwright, Alaska: Artic Aeromedical Laboratory. 1986:105-9

32. Reynafarje BD, Marticorena E. Bioenergetics of the heart at high altitude: environmental hypoxia imposes profound transformations on the myocardial process of ATP synthesis. J Bioenerg Biomembr. 2002;34:407-12

33. Reynafarje BD, Lehninger AL. The K+/site and H+/site stoichiometry of mitochondrial electron transport. J Biol Chem. 1978;253:6331-4

34. Perez JA, Ferguson SJ. Kinetics of oxidative phosphorylation in Paracoccus denitrificans. 2. Evidence for a kinetic and thermodynamic modulation of F0F1-ATPase by the activity of the respiratory chain. Biochemistry. 1990;29:10518-26

35. Chung Y, Molé PA, Sailasuta N, Tran TK, Hurd R, Jue T. Control respiration and bienergetics during muscle contraction. Am J Physiol. 2005;288:C730-8
