Int J Med Sci 2007; 4(2):98-104. doi:10.7150/ijms.4.98

Research Paper

No associations of Helicobacter pylori infection and gastric atrophy with plasma total homocysteine in Japanese

Simon Itou1,2, Yasuyuki Goto1, Takaaki Kondo3, Kazuko Nishio1, Sayo Kawai1, Yoshiko Ishida1, Mariko Naito1, Nobuyuki Hamajima1 Corresponding address

1. Department of Preventive Medicine / Biostatistics and Medical Decision Making, Nagoya University Graduate School of Medicine, 65 Tsurumai-cho, Showa-ku, Nagoya, 466-8550 Japan
2. Division of Thoracic Surgery, Department of Surgery, Nagoya University Graduate School of Medicine, 65 Tsurumai-cho, Showa-ku, Nagoya, 466-8550 Japan
3. Department of Medical Technology, Nagoya University School of Health Sciences, 1-1-20 Daikominami, Higashi-ku, Nagoya, 461-8673 Japan

This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) License. See for full terms and conditions.
How to cite this article:
Itou S, Goto Y, Kondo T, Nishio K, Kawai S, Ishida Y, Naito M, Hamajima N. No associations of Helicobacter pylori infection and gastric atrophy with plasma total homocysteine in Japanese. Int J Med Sci 2007; 4(2):98-104. doi:10.7150/ijms.4.98. Available from


Recent studies have suggested that Helicobacter pylori (H. pylori) infection might be a risk factor for atherosclerosis. Since the bacterium has not been isolated from atherosclerotic lesions, a direct role in atherogenesis is not plausible. We examined associations of plasma total homocysteine (tHcy) and serum folate, independent risk factors for atherosclerosis, with H. pylori infection and subsequent gastric atrophy among 174 patients (78 males and 96 females) aged 20 to 73 years, who visited an H. pylori eradication clinic of Nagoya University from July 2004 to October 2005. Polymorphism genotyping was conducted for methylenetetrahydrofolate reductase (MTHFR) C677T and thymidylate synthase (TS) 28-bp tandem repeats by PCR with confronting two-pair primers and PCR, respectively. H. pylori infection and gastric atrophy were not significantly associated with hyperhomocysteinemia (tHcy ≥ 12 nmol/ml), when adjusted by sex, age, smoking, alcohol, and genotypes of MTHFR and TS. The adjusted odds ratio of gastric atrophy for low folate level (≤ 4mg/ml) was 0.21 (95% confidence interval = 0.05-0.78). The associations of tHcy with serum folate and MTHFR genotype were clearly observed in this dataset. The present study demonstrated that folate and MTHFR genotype were the deterministic factors of plasma tHcy, but not H. pylori infection and subsequent gastric atrophy, indicating that even if H. pylori infection influences the risk of atherosclerosis, the influence may not be through the elevation of homocysteine.

Keywords: Helicobacter pylori, homocysteine, methylenetetrahydrofolate reductase (MTHFR), thymidylate synthase (TS), gastric atrophy

1. Introduction

Several epidemiologic studies have shown associations between persistent gastric infection with Helicobacter pylori and ischemic disorders [1-4]. The ischemic diseases are also associated with plasma total homocysteine (tHcy) level [5-7]. Hyperhomocysteinemia, usually defined as a plasma homocysteine level greater than 15 nmol/ml, has been found in 5% to 10% of general populations [8, 9], and as high as 30% of the population aged 65 and older in the Framingham Heart Study (tHcy > 14 nmol/ml) [10]. Increasing tHcy concentrations accelerate cardiovascular diseases by promoting vascular inflammation, endothelial dysfunction, and hypercoagulability [11].

An important metabolic pathway for homocysteine is the remethylation cycle; in this reaction homocysteine is converted into methionine by methionine synthase. The folic acid–methionine pathway is particularly relevant to the control of genome stability, and involves a number of critical enzymes for which several polymorphisms have been identified. The activity of methylenetetrahydrofolate reductase (MTHFR) can be reduced by polymorphisms of MTHFR that alter its affinity for the substrate or cofactor [12]. There were several studies on the association between hyperhomocysteinemia and H. pylori infection, but the results were inconsistent [1, 2, 13-16].

Thymidylate synthase (TS) gene encodes the enzyme that catalyzes the conversion of deoxyuridylate to thymidylate. The enzyme expression is reportedly affected by a 28bp tandem repeat polymorphism. The 3R3R homozygotes increased tHcy in a Chinese population, possibly because TS and MTHFR compete for limiting supplies of folate, which is required for the remethylation of homocysteine [17]. However, another study showed that the tHcy concentrations for 3R3R homozygotes did not differ significantly from those for 2R2R homozygotes or 2R3R heterozygotes in healthy young subjects [18].

Several pathways by which H. pylori infection could lead to atherosclerosis have been hypothesized (Figure 1). Among them, the routes from H. pylori infection to gastric atrophy and from low folate concentration to hyperhomocysteinemia are well established. But the routes between H. pylori infection and hyperhomocysteinemia are not confirmed. The aim of our study was to examine the hypothesized association between H. pylori infection and hyperhomocysteinemia adjusted with MTHFR, TS, sex, and age. The present study was approved by the Ethics Committee of Nagoya University Graduate School of Medicine (approval number 174).

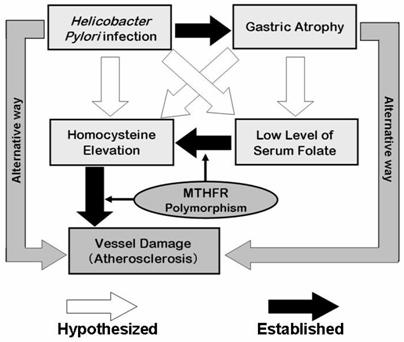

 Figure 1

Hypothesized pathways from Helicobacter pylori infection to atherosclerosis

Int J Med Sci Image (Click on the image to enlarge.)

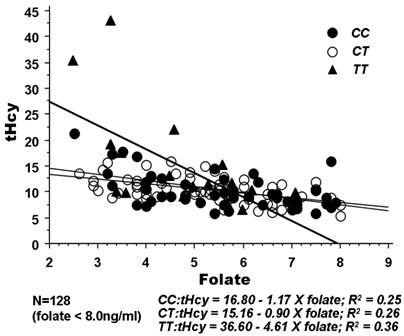

 Figure 2

Correlation between serum folate and plasma total homocysteine according to MTHFR C677T genotype among those with serum folate < 8.0 ng/ml

Int J Med Sci Image (Click on the image to enlarge.)

2. Patients and Methods

Study Subjects

Subjects were patients who visited Daiko Medical Center of Nagoya University in Nagoya Japan for H. pylori infection tests and subsequent eradication treatment, from July 2004 to October 2005. Those aged 20 to 75 years were enrolled after the informed consent on polymorphism genotyping. Participants who had smoked less than 100 cigarettes in their lifetime were categorized as never smokers, and all others were categorized as ever smokers. Participants who had drunk alcoholic beverages at least once a week were categorized as “Yes”, and the rest were as “No”. When the subjects were positive for serology and/or urea breath test, they were classified into positive for H. pylori infection. Gastric atrophy was assessed with serum pepsinogens (PGI < 70ng/dl and PGI/II < 3). Blood samples were collected for measurement of plasma tHcy and serum folate. We defined tHcy levels of 12 nmol/ml and more as hyperhomocysteinemia, and folate levels of 4 mg/dl and lower as lower serum folate based on the frequency distribution (the highest and lowest quartile, respectively).


DNA was extracted from buffy coat conserved at –40℃ using a BioRobot® EZ1 (QIAGEN Group, Tokyo). MTHFR C677T polymorphism was genotyped by a polymerase chain reaction with confronting two-pair primers (PCR-CTPP) [19]. Each 25 µl reaction tube contained 50-80ng DNA, 0.12 mM dNTP, 12.5 pmol of each primer, 0.5 U AmpliTaq Gold (Perkin-Elmer, Foster City, CA) and 2.5 µl of 10x PCR buffer including 15 mM MgCl2. The PCR was conducted with initial denaturation at 95°C for 10 minutes, 30 cycles of denaturation at 95°C for 1 minute, annealing at 60°C for 1 minute, and extension at 72°C for 1 minute, and a final extension at 72°C for 5 minutes. The primers were F1: 5'-AGC CTC TCC TGA CTG TCA TCC-3', R1: 5'-TGC GTG ATG ATG AAA TCG G-3', F2: 5'-GAG AAG GTG TCT GCG GGA GT-3', and R2: 5'-CAT GTC GGT GCA TGC CTT-3'. The amplified DNA fragments were 128-base pairs (bp) for the C allele, 93-bp for the T allele, and 183-bp for common band. The tandem repeat sequences in the 5'-terminal of the regulatory region of the TS gene were detected by PCR assay as previously reported [20].

Statistical analysis

Differences in age, sex, smoking status, alcohol consumption, concentration of serum folate and tHcy, and genotype frequencies between the positives and the negatives of H. pylori infection and gastric atrophy were examined by a Mann-Whitney U test or chi-square test. Sex-age-adjusted odds ratio (OR), 95% confidence interval (CI), and interaction term of hyperhomocysteinemia and lower serum folate were estimated with an unconditional logistic model. All statistics were calculated by the computer program StatView Version 5 (SAS Institute Inc.). Hardy-Weinberg equilibrium was also examined.

3. Results

One hundred seventy four patients participated in this study. There were 4 patients whose gastric atrophy was not examined by the pepsinogen test. The H. pylori positive perticipants were 115 (66.1%) in all patients, and gastric atrophy was observed in 46/170 (27.1%). The gastric atrophy was in 39.1% among 115 positive individuals. Gastric atrophy without H. pylori infection was found for only one patient who had undergone an H. pylori eradiation treatment.

The characteristics of patients according to H. pylori infection and gastric atrophy are shown in Table 1. Age was significantly associated with H. pylori infection and gastric atrophy. There were no significant differences in sex, smoking status and drinking status between the groups compared. The frequencies of MTHFR and TS genotypes were similar between the positives and the negatives. The observed frequencies of the two polymorphisms did not deviate from Hardy-Weinberg equilibrium (p=0.10 for MTHFR and p= 0.59 for TS).

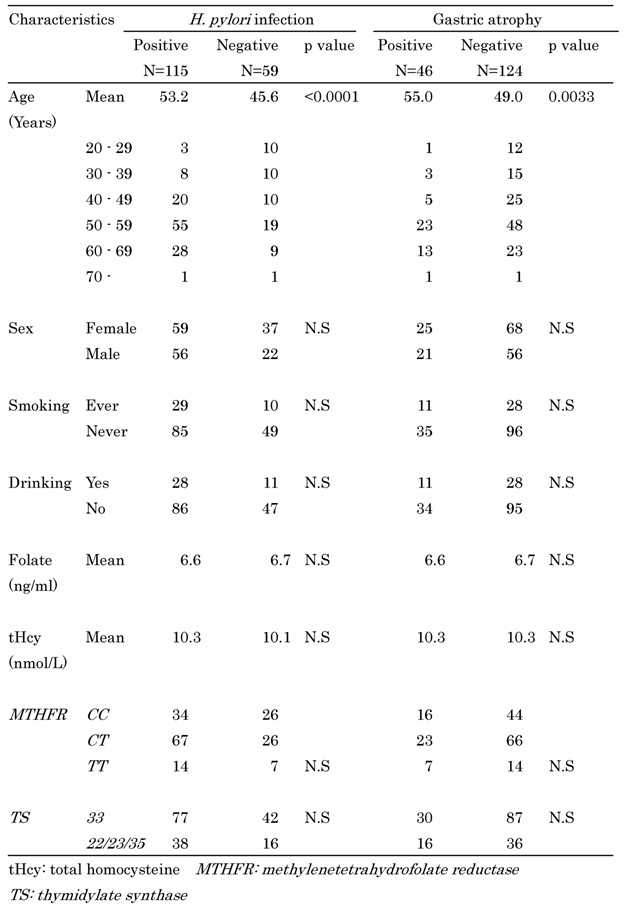

 Table 1

Characteristics according to H. pylori infection and gastric atrophy

Int J Med Sci Image (Click on the image to enlarge.)

There was a strong association between plasma tHcy and the MTHFR genotype. Concentration of tHcy was significantly higher for TT genotype (13.9±9.4 nmol/ml) than for CC/CT genotype (9.7±2.9 nmol/ml) (p<0.0001). The other factors elevating tHcy level were males and ever smokers. The factors reducing serum folate level were males, ever smokers and drinkers. As the concentration of folate became lower, the difference in elevation of the tHcy concentration due to MTHFR polymorphism became larger. The MTHFR genotype had the strongest influence on the elevation of tHcy concentration among the factors examined. Figure 2 shows the correlation between folate and tHcy among those with folate < 8.0ng/ml. The slope of the regression line was steepest for those with TT genotype (slope = -4.61). Those with folate ≥ 8.0ng/ml had stable tHcy levels.

No significant differences in concentrations of serum folate and tHcy were found between the positives and the negatives of H. pylori infection and gastric atrophy according to the genotypes of MTHFR and TS in any subgroups defined by the genotypes (Table 2).

Table 3 shows the ORs and 95% CIs of hyperhomocysteinemia ( 12 nmol/ml), adjusted for age, sex, and the factors listed in the Table. The OR was above unity for H. pylori infection and below unity for gastric atrophy, through not significant. The OR of genotype of MTHFR was not significant in the multivariate analysis for hyperhomocysteinemia. Table 4 shows the ORs and 95% CIs for folate ≤ 4 mg/ml, adjusted for the same factors. Gastric atrophy decreased a risk of lower serum folate (adjusted OR=0.21, 95% CI, 0.05-0.78). Smoking status was a significant factor of lower serum folate.

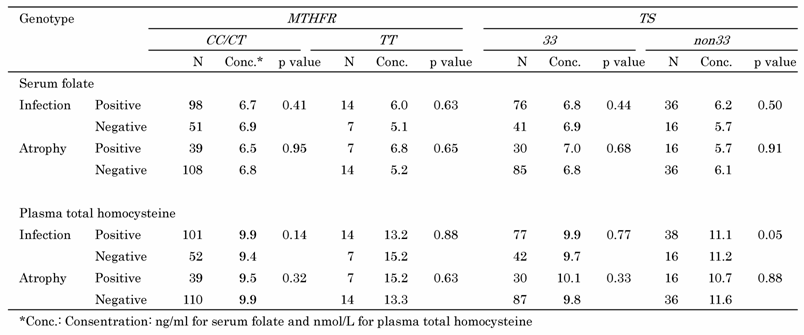

 Table 2

Concentrations of serum folate and plasma total homocysteine according to genotypes of methylenetetrahydrofolate reductase (MTHFR) and thymidylate synthase (TS), H. pylori infection and gastric atrophy

Int J Med Sci Image (Click on the image to enlarge.)

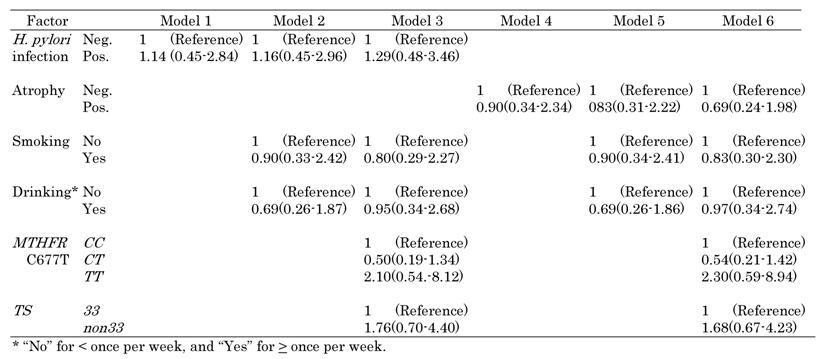

 Table 3

Odds ratio (OR) and 95% confidence interval (95% CI) of hyperhomocysteinemia (≥ 12 n mol/ml), adjusted for age, sex, and the factors listed

Int J Med Sci Image (Click on the image to enlarge.)

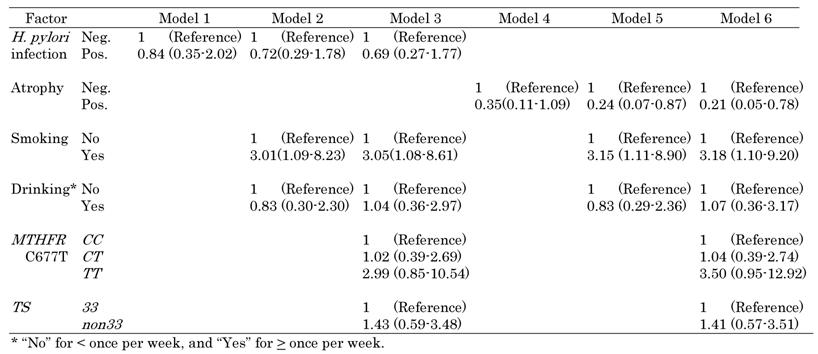

 Table 4

Odds ratio (OR) and 95% confidence interval (95% CI) of lower serum folate (≤ 4 mg/ml), adjusted for age, sex, and the factors listed

Int J Med Sci Image (Click on the image to enlarge.)

4. Discussion

Hyperhomocysteinemia is a well-established independent risk factor for the development of atherosclerosis-related diseases due to vascular endothelial damage and hypercoagulability. Some studies demonstrated an association between H. pylori infection and hyperhomocysteinemia [1-4], while the other studies did not. [15, 16, 21-23]. Our study taking into the genotypes of folate metabolizing enzymes did not indicate the association.

A number of studies on the possible H. pylori involvement for coronary heart disease have been published with conflicting results [24, 25], but a meta-analysis reported no strong association between H. pylori infection and ischemic heart disease in 1988 [26]. Recent reports consistently revealed the association between Cag A-positive H. pylori and vascular risk [27, 28]. On the other hand, there were many reports of positive associations of stroke and carotid artery disease with H. pylori infection. In addition, there was a strong association in subgroup analysis of patients with different etiologies of cerebral ischemia [29-31].

Epidemiologic studies have shown that homocysteine is associated with sex, age, smoking status and drinking status [8]. In Japan, Moriyama et al reported that age-adjusted plasma homocysteine levels were higher for both men and women with the TT genotype than those with CC or CT genotype in their cross-sectional study [32]. Casas et al searched for all relevant studies on the association between homocysteine concentration and MTHFR polymorphism, and reported that homocysteine concentration between TT and CC homozygotes was 1.93 µmol/L and the odds ratio for stroke was 1.26 (95% CI, 1.14 to 1.40) for TT versus CC homozygotes [33]. A meta-analysis reported that ischemic stroke risk increased with increasing MTHFR 677T allele dose, suggesting an influence of this polymorphism as a genetic stroke risk factor [34]. But another recent meta-analysis reported that no strong evidence existed to support an association heart disease in Europe, North America, or Australia [35]. Devlin et al reported that the affection of MTHFR polymorphism to hyperhomocysteinemia was significantly strong in lower folate level [36]. Our result supported that the MTHFR C677T polymorphism was associated with homocysteine concentration, and persons with TT genotype trended to be a hyperhomocysteinemia in lower folate level (Figure 2). It is important to include this factor for evaluation of the association between H. pylori infection and homocysteine.

There are three steps in this logical proposition. First step is that H. pylori infection causes to gastric atrophy, and second step is that gastric atrophy makes malabsorption to reduce serum folate level. And last step is that lower folate level causes tHcy level elevation.

The first step was well established [37]; our study also showed a very strong association between gastric atrophy and H. pylori infection. In the second step, there were few reports demonstrated that gastric atrophy blocked the absorption of folate. Gastric atrophy causes an increase in gastric pH and a decrease in ascorbic acid; the two mechanisms may cause a reduction in folate absorption [38, 39]. In the present study, gastric atrophy decreased a risk of lower folate opposite to what we expected. There were no other factors available for the adjustment, so the reason for this significant association was unknown. Anyway, gastric atrophy may not increase a risk of lower folate. H. pylori infection was not significantly associated with lower folate level and hyperhomocysteinemia.

The last step was demonstrated by several studies. Markedly elevated homocysteine concentration have been observed in patients with nutritional deficiencies of the essential cofactor vitamin B12 and the cosubstrate folate [40, 41]. But these are negative reports for subjects with high folate levels [1, 10]. Our present study showed that TT genotype of MTHFR trended to have hyperhomocysteinemia in lower folate level, and tHcy was low among those with high folate level independently on the genotypes.

Because there is no consistent evidence, the hypothesis that H. pylori causes hyperhomocysteinemia was still controversial. Recent studies reported that no significant difference in blood homocysteine level between the positives and the negatives [14-16]. Our logistic analysis showed the similar results indicating that there is no link from H. pylori infection to hyperhomocysteinemia.

5. Conclusion

This study was the first study that analyzed association between H. pylori infection and hyperhomocysteinemia in normal subjects taking into account the polymorphism of MTHFR. There was no significant difference in concentration of serum folate and tHcy between those with and without H. pylori infection and gastric atrophy. We found a trend to elevate tHcy in TT genotype of MTHFR as lower serum folate. Our result suggested that there are no pathways from H. pylori infection to hyperhomocysteinemia in Japanese and an alternative pathway may exist in association of H. pylori infection to atherosclerosis, if exists.


The authors are grateful to Ms. Mio Kurata and Ms. Yoko Mitsuda for their technical assistance. This work was supported in part by a Grant-in-Aid for Scientific Research on Special Priority Areas of Cancer from the Ministry of Education, Culture, Sports, Science and Technology of Japan.

Conflicts of interest

The authors have declared that no conflict of interest exists.


1. Bloemenkamp DG, Mali WP, Tanis BC. et al. The relation between Helicobacter pylori and atherosclerosis cannot be explained by a high homocysteine concentration. Eur J Clin Invest. 2002;32:549-55

2. Tamura A, Fujioka T, Nasu M. Relation of Helicobacter pylori infection to plasma vitamin B12, folic acid, and homocysteine levels in patients who underwent diagnostic coronary arteriography. Am J Gastroenterol. 2002;97:861-6

3. Santarelli L, Gabrielli M, Cremonini F. et al. Atrophic gastritis as a cause of hyperhomocysteinaemia. Aliment Pharmacol Ther. 2004;19:107-11

4. Kutluana U, Simsek I, Akarsu M. et al. Is there a possible relation between atrophic gastritis and premature atherosclerosis?. Helicobacter. 2005;10:623-9

5. Kuo HK. Relationship between homocysteine and cardiovascular diseases in older adults. J Am Geriatr Soc. 2004;52:1955-6

6. Collaboration THS. Homocysteine and risk of ischemic heart disease and stroke: a meta-analysis. JAMA. 2002;288:2015-22

7. Wald DS, Law M, Morris JK. Homocysteine and cardiovascular disease: evidence on causality from a meta-analysis. BMJ. 2002;325:1202

8. Refsum H, Nurk E, Smith AD. et al. The Hordaland Homocysteine Study: a community-based study of homocysteine, its determinants, and associations with disease. J Nutr. 2006;136:1731S-40S

9. Booth GL, Wang EE. Preventive health care, 2000 update: screening and management of hyperhomocysteinemia for the prevention of coronary artery disease events. The Canadian Task Force on Preventive Health Care. CMAJ. 2000;163:21-9

10. Selhub J, Jacques PF, Wilson PW. et al. Vitamin status and intake as primary determinants of homocysteinemia in an elderly population. JAMA. 1993;270:2693-8

11. Welch GN, Loscalzo J. Homocysteine and atherothrombosis. N Engl J Med. 1998;338:1042-50

12. Davis SR, Quinlivan EP, Shelnutt KP. et al. Homocysteine synthesis is elevated but total remethylation is unchanged by the methylenetetrahydrofolate reductase 677C->T polymorphism and by dietary folate restriction in young women. J Nutr. 2005;135:1045-50

13. Pellicano R, Fagoonee S, Rizzetto M. et al. Helicobacter pylori and coronary heart disease: which directions for future studies?. Crit Rev Microbiol. 2003;29:351-9

14. Yoshino N, Adachi K, Takashima T. et al. Helicobacter pylori infection does not affect the serum level of homocysteine. Am J Gastroenterol. 2002;97:2927-8

15. Whincup PH, Mendall MA, Perry IJ. et al. Hyperhomocysteinaemia, Helicobacter pylori, and coronary heart disease. Heart. 1997;78:524

16. Saxena V, Markus H, Swaminathan S. et al. Hyperhomocysteinaemia, Helicobacter pylori, and coronary heart disease. Heart. 1997;78:524

17. Trinh BN, Ong CN, Coetzee GA. et al. Thymidylate synthase: a novel genetic determinant of plasma homocysteine and folate levels. Hum Genet. 2002;111:299-302

18. Brown KS, Kluijtmans LA, Young IS. et al. The thymidylate synthase tandem repeat polymorphism is not associated with homocysteine concentrations in healthy young subjects. Hum Genet. 2004;114:182-5

19. Hamajima N, Saito T, Matsuo K. et al. Polymerase chain reaction with confronting two-pair primers for polymorphism genotyping. Jpn J Cancer Res. 2000;91:865-8

20. Hishida A, Matsuo K, Hamajima N. et al. Associations between polymorphisms in the thymidylate synthase and serine hydroxymethyltransferase genes and susceptibility to malignant lymphoma. Haematologica. 2003;88:159-66

21. Leung WK, Ma PK, Choi PC. et al. Correlation between Helicobacter pylori infection, gastric inflammation and serum homocysteine concentration. Helicobacter. 2001;6:146-50

22. Sipponen P, Laxen F, Huotari K. et al. Prevalence of low vitamin B12 and high homocysteine in serum in an elderly male population: association with atrophic gastritis and Helicobacter pylori infection. Scand J Gastroenterol. 2003;38:1209-16

23. Ozer B, Serin E, Gumurdulu Y. et al. Helicobacter pylori eradication lowers serum homocysteine level in patients without gastric atrophy. World J Gastroenterol. 2005;11:2764-7

24. Mendall MA, Goggin PM, Molineaux N. et al. Relation of Helicobacter pylori infection and coronary heart disease. Br Heart J. 1994;71:437-9

25. Patel P, Mendall MA, Carrington D. et al. Association of Helicobacter pylori and Chlamydia pneumoniae infections with coronary heart disease and cardiovascular risk factors. BMJ. 1995;311:711-4

26. Danesh J, Peto R. Risk factors for coronary heart disease and infection with Helicobacter pylori: meta-analysis of 18 studies. BMJ. 1998;316:1130-2

27. Stone AF, Risley P, Markus HS. et al. Ischaemic heart disease and Cag A strains of Helicobacter pylori in the Caerphilly heart disease study. Heart. 2001;86:506-9

28. Figura N, Palazzuoli A, Faglia S. et al. Infection by CagA-positive Helicobacter pylori strains in patients with ischemic heart disease: prevalence and association with exercise-induced electrocardiographic abnormalities. Dig Dis Sci. 2002;47:831-6

29. Heuschmann PU, Neureiter D, Gesslein M. et al. Association between infection with Helicobacter pylori and Chlamydia pneumoniae and risk of ischemic stroke subtypes: Results from a population-based case-control study. Stroke. 2001;32:2253-8

30. Preusch MR, Grau AJ, Buggle F. et al. Association between cerebral ischemia and cytotoxin-associated gene-A-bearing strains of Helicobacter pylori. Stroke. 2004;35:1800-4

31. Grau AJ, Buggle F, Lichy C. et al. Helicobacter pylori infection as an independent risk factor for cerebral ischemia of atherothrombotic origin. J Neurol Sci. 2001;186:1-5

32. Moriyama Y, Okamura T, Kajinami K. et al. Effects of serum B vitamins on elevated plasma homocysteine levels associated with the mutation of methylenetetrahydrofolate reductase gene in Japanese. Atherosclerosis. 2002;164:321-8

33. Casas JP, Bautista LE, Smeeth L. et al. Homocysteine and stroke: evidence on a causal link from mendelian randomisation. Lancet. 2005;365:224-32

34. Cronin S, Furie KL, Kelly PJ. Dose-related association of MTHFR 677T allele with risk of ischemic stroke: evidence from a cumulative meta-analysis. Stroke. 2005;36:1581-7

35. Lewis SJ, Ebrahim S, Davey Smith G. Meta-analysis of MTHFR 677C->T polymorphism and coronary heart disease: does totality of evidence support causal role for homocysteine and preventive potential of folate?. BMJ. 2005;331:1053-8

36. Devlin AM, Clarke R, Birks J. et al. Interactions among polymorphisms in folate-metabolizing genes and serum total homocysteine concentrations in a healthy elderly population. Am J Clin Nutr. 2006;83:708-13

37. Sakaki N, Kozawa H, Egawa N. et al. Ten-year prospective follow-up study on the relationship between Helicobacter pylori infection and progression of atrophic gastritis, particularly assessed by endoscopic findings. Aliment Pharmacol Ther. 2002;16(Suppl 2):198-203

38. Lucock MD, Priestnall M, Daskalakis I. et al. Nonenzymatic degradation and salvage of dietary folate: physicochemical factors likely to influence bioavailability. Biochem Mol Med. 1995;55:43-53

39. Sung JJ, Sanderson JE. Hyperhomocysteinaemia, Helicobacter pylori, and coronary heart disease. Heart. 1996;76:305-7

40. Kang SS, Wong PW, Norusis M. Homocysteinemia due to folate deficiency. Metabolism. 1987;36:458-62

41. Stabler SP, Marcell PD, Podell ER. et al. Elevation of total homocysteine in the serum of patients with cobalamin or folate deficiency detected by capillary gas chromatography-mass spectrometry. J Clin Invest. 1988;81:466-74

Author contact

Corresponding address Correspondence to: Simon Itou, Department of Preventive Medicine / Biostatistics and Medical Decision Making, Nagoya University Graduate School of Medicine, 65 Tsurumai-cho, Showa-ku, Nagoya, 466-8550 Japan. E-mail: Phone: +81-52- 744-2132 / Fax: +81-52-744-2971

Received 2007-1-12
Accepted 2007-3-13
Published 2007-3-14
