Research Paper

A cyclic-RGD-BioShuttle functionalized with TMZ by DARinv “Click Chemistry” targeted to αvβ3 integrin for therapy

Klaus Braun1* Corresponding address, Manfred Wiessler1*, Rüdiger Pipkorn2, Volker Ehemann3, Tobias Bäuerle1, Heinz Fleischhacker1, Gabriele Müller4, Peter Lorenz1, Waldemar Waldeck4

1. German Cancer Research Center, Dept. of Imaging and Radiooncology, INF 280, D-69120 Heidelberg, Germany
2. German Cancer Research Center, Central Peptide Synthesis Unit, INF 580, D-69120 Heidelberg, Germany
3. University of Heidelberg, Institute of Pathology, INF 220, D-69120 Heidelberg, Germany
4. German Cancer Research Center, Division of Biophysics of Macromolecules, INF 580, D-69120 Heidelberg, Germany
* The authors contributed equally to this work

Braun K, Wiessler M, Pipkorn R, Ehemann V, Bäuerle T, Fleischhacker H, Müller G, Lorenz P, Waldeck W. A cyclic-RGD-BioShuttle functionalized with TMZ by DARinv “Click Chemistry” targeted to αvβ3 integrin for therapy. Int J Med Sci 2010; 7(6):326-339. doi:10.7150/ijms.7.326.
Other styles

File import instruction


Clinical experiences often document, that a successful tumor control requires high doses of drug applications. It is widely believed that unavoidable adverse reactions could be minimized by using gene-therapeutic strategies protecting the tumor-surrounding healthy tissue as well as the bone-marrow. One new approach in this direction is the use of “Targeted Therapies” realizing a selective drug targeting to gain effectual amounts at the target site, even with drastically reduced application doses. MCF-7 breast cancer cells expressing the αvβ3 [alpha(v)beta(3)] integrin receptor are considered as appropriate candidates for such a targeted therapy. The modularly composed BioShuttle carrier consisting of different units designed to facilitate the passage across the cell membranes and for subcellular addressing of diagnostic and/or therapeutic molecules could be considered as an eligible delivery platform. Here we used the cyclic RGD-BioShuttle as a carrier for temozolomide (TMZ) at the αvβ3 integrin receptor realizing local TMZ concentrations sufficient for cell killing. The IC50 values are 12 µMol/L in the case of cRGD-BioShuttle-TMZ and 100 µMol/L for underivatized TMZ, which confirms the advantage of TMZ reformulation to realize local concentrations sufficient for cell killing.

Our paper focuses on the design, synthesis and application of the cRGD-BioShuttle conjugate composed of the cyclic RGD, a αvβ3 integrin-ligand, ligated to the cytotoxic drug TMZ. The ligation was carried out by the Diels Alder Reaction with inverse electron demand (DARinv).

Keywords: Click-Chemistry, Cycloaddition, BioShuttle, Ligation chemistry, Linker Systems, Adaptor Systems, inverse Diels Alder Reaction, RGD, Tetrazines, targeted Therapy, Temozolomide


Breast cancer is one of the most common malignancies affecting women in developed countries.[1] Approximately three out of four women with breast cancer develop metastases in bone which, in turn, diminish the quality of life.[2] An optimal treatment concept for patients needs different therapy modalities and methods with an optimum in efficiency and the greatest possible protection. Attention should be laid on an individual and not just standardized plan of treatment for every single patient and all available therapy options should be used, such as immunotherapy, surgery or chemotherapy sensibly using cytostatic active agents with acceptable adverse reactions. It is remarkable how dated medical treatment methods are persistently continued [reported during the “International Brain Tumor Research Conference 2010 (].

Toxic side effects are documented for TMZ as adverse reactions in the bone-marrow. Moreover, it is known from clinical experience, that even higher application doses are necessary for successful tumor control. This approach seems obsolete now, because 'Targeted Therapy' has reached the focus of scientific interest in order to minimize such unavoidable drastic side effects. Strategies were discussed during the aforementioned meeting to protect the bone-marrow, e.g. with gene-therapeutic methods. Another interesting field is the regional chemotherapy in which cytostatic drugs are being locally applied to certain body regions. The topical application increases the amount of active substances in the tumor and improves efficiency, while lowering the side effect rate at the same time.

However, many cell immanent obstacles inhibit chemical therapy, such as the multidrug resistance (MDR) mediated against cytotoxic agents like TMZ, and apoptosis resistance with disruption of the complex programmed cell death pathway network. The Janicke group documented apoptosis resistant MCF-7 breast cancer cells treated with ionizing radiation, however especially breast micro-metastases are difficult to determine and even more difficult to treat effectively.

Therefore only a selective targeting of the drug can deliver an effectual amount of TMZ to its target site, even with drastically reduced application doses. How to perform this is exemplarily shown here by targeting and controlling breast cancer cells.

Our considerations to overcome these resistance-inducing factors led to the application of ligands, which are target-specific for cell-typical surface receptors, as described as follows.

On these cells the αvβ3 [alpha(v)beta(3)] and αvβ5 [alpha(v)beta(5)]integrins are heterodimeric cell surface receptors which mediate adhesion between cells and the extracellular matrix.[3] The αvβ3 receptor has previously been implicated in a key role of tumor progression, metastasis and osteoclast bone resorption. [4] Integrins, the corresponding ligands, are evolutionarily old and have critical roles during developmental and pathological processes. The antibodies to αvβ3 integrin and its antagonists like arg-gly-asp (RGD)-containing peptides, including osteopontin, bone sialoprotein, vitronectin and fibrinogen are considered as efficient inhibitors which can control the tumor progression.[5]

This αvβ3 integrin receptor is documented as an outstanding target in the field of tumor imaging [6-8] and is equally important as a chemotherapeutic target in the field of targeted therapy.[9]

Endocytosis-mediated intracellular trafficking of ligands via the αvβ3 receptor of MCF-7 cells and the αvβ5 integrin receptor into the perinuclear region of HeLa cells is documented, which lack the functional αvβ3 receptor.[10] Interestingely HeLa cells, which express the αvβ3 integrin receptor at low level, possess lower invasive potential than MCF-7 cells. In our experiments we used MCF-7 human breast cancer cells and HeLa cervix cancer cells to investigate the new cRGD-BioShuttle as a delivery platform for targeting with TMZ in order to realize high local TMZ concentrations at the MCF-7 and HeLa cell's surfaces and, after uptake into the cells sufficient for cell killing.

This paper intends to summarize the major efforts reached thus far and focuses on the design, synthesis and application of the cRGD-BioShuttle-TMZ conjugate. The whole molecule was synthesized via Diels Alder Reaction with inverse electron demand. It is composed of the cyclic RGD-containing the αvβ3 and αvβ5 integrin antagonist cRGD.

Cell culture

The estrogen sensitive MCF-7 adenocarcinoma breast cancer and HeLa cervix cancer cells (dkfz, tumorbank) were maintained at 37°C in a 5% CO2 atmosphere in RPMI cell medium (Gibco, Germany) supplemented with 5% fetal calf serum (Biochrome, Germany). The cells were split twice a week.

Chemical Procedures

Synthesis of the RGD-BioShuttle

Derivatization of temozolomide

N-(2-Aminopropyl)-4-(6-(pyrimidine-2-yl)-1,2,4,5-tetrazine-3-yl)benzamide 4

4-(6-(Pyrimidine-2-yl)-1,4-dihydro-1,2,4,5-tetrazine-3-yl)benzoic acid (3) was prepared from 2-cyanopyrimidine 1 and 4-cyano-benzoic acid 2 by reaction with hydrazine and then oxidized with sodium nitrite to the tetrazine derivative 4 according to the following procedure [11]. The tetrazine derivative was converted with thionyl chloride under standard conditions to the chloride 5. To this suspension of the acid chloride (2 mmol) in 20 ml CH2Cl2 a solution of N-Boc-1,3-diaminopropane (2 mmol) and TEA (2 mmol) in 10 ml CH2Cl2 was slowly added at 0-5°C. The resulting solution was deeply coloured and maintained for 4 h at room temperature. Then the organic phase was washed with water, followed by 1N HCl and again water. The organic layer was dried over Na2SO4 and evaporated. The resulting residue was chromatographed on silica gel by elution with chloroform/ethanol (9:1) and further purified by recrystallization from acetone. Yield: 50 to 70 % depending on the quality of the carboxylic acid. ESI MS: m/z 437.2 [M]+. The Boc-protected derivative was treated with TFA (5 ml) for 30 min at room temperature and isolated by evaporation to a solid residue (6) (ESI: m/z 337.2 [M]+ (as shown in Figure A).

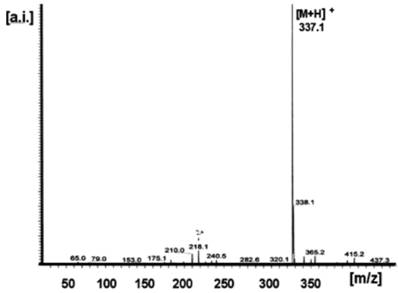

 Figure A

shows the mass of the N-(2-Aminopropyl)-4-(6-(pyrimidine-2-yl)-1,2,4,5-tetrazine-3-yl)benzamide (6 in scheme 1/Figure S1), as discussed by Wiessler [12].

Int J Med Sci Image

3-Methyl-4-oxo-3,4-dihydroimidazo[5,1-d][1,2,3,5]tetrazine-8-carboxylic acid chloride 7

3-Methyl-4-oxo-3,4-dihydroimidazo[5,1-d][1,2,3,5]tetrazine-8-carboxylic acid was converted to the corresponding chloride 7 as documented by Arrowsmith [13]. The acid (2 mmol) was refluxed with thionyl chloride (10 ml) until the acid was completely dissolved. The excess of thionyl chloride was evaporated under vacuum and the resulting solid was stored over NaOH.

3-Methyl-4-oxo-N-(3-(4-(6-(pyrimidine-2-yl)-1,2,4,5-tetrazine-3-yl)benzamido)propyl)-3,4-dihydroimidazo[5,1-d][1,2,3,5]tetrazine-8-carboxamide (TMZ-tetrazine diene) 9

Compound 8 (0.5 mmol) and the chloride 7 (0.5 mmol) were dissolved in 5 ml chloroform and 5 ml TEA at 0-5 °C. After 4 h at room temperature, the solution was washed with water, 1 N HCl and again with water. The organic layer was dried over Na2SO4 and evaporated. The residue was purified by chromatography (silica gel) with chloroform/ethanol (9.5/0.5). Yield: 68%: ESI: m/z 536.3 [M+Na]+. (Figure B)

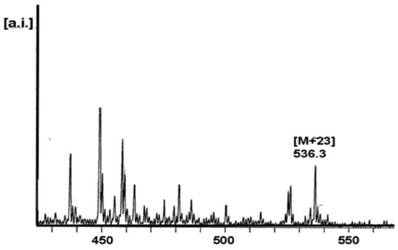

 Figure B

shows the mass of 3-methyl-4-oxo-N-(3-(4-(6-(pyrimidine-2-yl)-1,2,4,5-tetrazine-3-yl)benzamido)propyl)-3,4-dihydroimidazo[5,1-d][1,2,3,5]tetrazine-8-carboxamide {TMZ-tetrazine diene (9 in scheme 1/Figure S1)} [12].

Int J Med Sci Image

Derivatizations of the cRGD

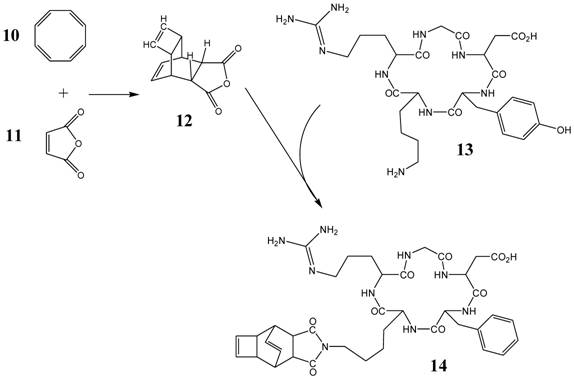

Synthesis of the Reppe anhydride 12

The tetracyclo-[5.4.21,7.02,6.08,11]3,5-dioxo-4-aza-9,12-tridecadiene (Reppe-anhydride) 12 was prepared from 42 mg of (1Z,3Z,5Z,7Z)-cycloocta-1,3,5,7-tetraene 10 and 44 mg maleic anhydride 11 in chloroform as documented by Reppe [14].

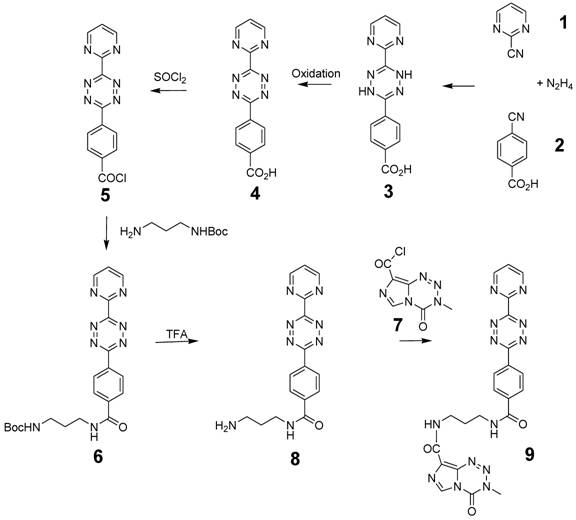

 Figure S1

(Scheme 1) the nitriles 1 and 2 react with hydrazine to the 4-(6-(pyrimidine-2-yl)-1,4-dihydro-1,2,4,5-tetrazine-3-yl)benzoic acid 3. Oxidation to 4 and reaction with thionyl chloride result in the corresponding acide chloride 5 which reacts with N-Boc-1,3-diaminopropane to the product 6. Boc-deprotection and subsequent reaction with 3-Methyl-4-oxo-3,4-dihydroimidazo[5,1-d][1,2,3,5]tetrazine-8-carboxylic acid chloride 7 result in the product 3-Methyl-4-oxo-N-(3-(4-(6-(pyrimidine-2-yl)-1,2,4,5-tetrazin-3-yl)benzamido)propyl)-3,4-dihydroimidazo[5,1-d][1,2,3,5]tetrazine-8-carboxamide (TMZ-tetrazine diene) 9.

Int J Med Sci Image
 Figure S2

(Scheme 2) illustrates the chemical reaction of (1Z,3Z,5Z,7Z)-cycloocta-1,3,5,7-tetraene 10 and 44 mg maleic anhydride 11 which produces the tetracyclo-[5.4.21,7.02,6.08,11]-3,5-dioxo-4-aza-9,12-tridecadiene 14 (NMH data of 12 are shown in the Figure C.

Int J Med Sci Image

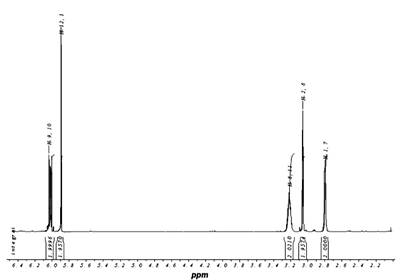

 Figure C

shows the 1H-NMR-spectrum of the Reppe Anhydride {TcT = (Tetracyclo-[5.4.21,7.O2,6.O8,11] 3,5-dioxo-4-aza-9,12-tridecadiene in CDCl3}. The structure describes the shift calculation for protons of the compound with ChemDraw Ultra 2004. (Numbers indicate the predicted shift of the signals in ppm, as discussed by Wiessler [12].

Int J Med Sci Image

Synthesis of the dienophile cRGD-Lys(Tct) (14)

30 µmol cRGD peptide (18 mg) 13 and 40 µmol (8 mg) tetracyclo-[5.4.21,7.02,6.08,11]3,5-dioxo-4-aza-9,12-tridecadiene 12 were dissolved in pyridine over 5 hours at 70° - 80°C. Yield: 6 mg 14. Empirical formula C39H49N9O9; exact Mass: 787.37 Mol. Wt.: 787.86

m/e: 787,37 (100,0%), 788,37 (43,1%), 789,37 (12,3%), 788,36 (3,3%), 790,38 (1,2%), 790,37 (1,1%) C, 59.45; H, 6.27; N, 16.00; O, 18.28 m/e peak at 788.5 for the product.

Ligation of the cRGD-Lys(Tct) with the TMZ-tetrazine 9

Equimolar amounts of the TMZ-tetrazine conjugate 9 (1.03 mg; 2 µmol) and cRGD-Lys(Tct) 14 (7.3 mg, 2 µmol) were dissolved in aqueous solution and stored at room temperature for 24 h. The DARinv reaction occurs at room temperature and was completed after the colour changed from magenta to yellow. The product 15 (cRGD-BioShuttle-TMZ) was isolated by lyophilization; yield: 98 %); MS ESI: m/e 1634.8; calculated C81H91N19O15S2 1633.6.

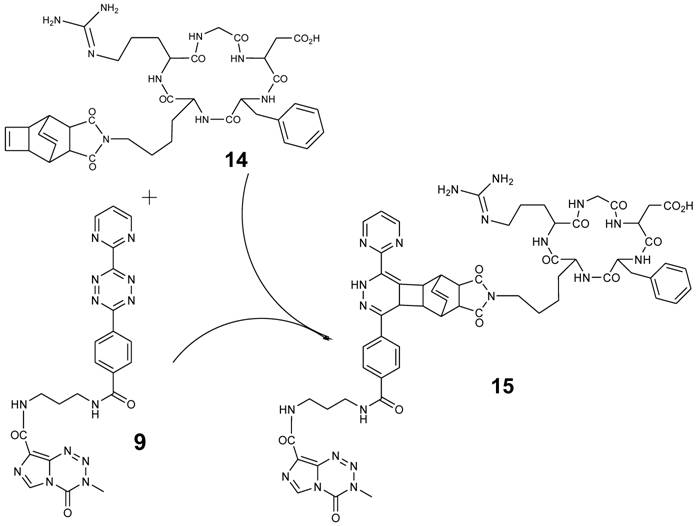

 Figure S3

(Scheme 3) shows the DARinv reaction of the diaryl-tetrazine harbouring TMZ 9 with cRGD functionalized with the Reppe Anhydride 14 to the product 15 (cRGD-BioShuttle-TMZ).

Int J Med Sci Image

Synthesis of the cRGD-dansyl

For investigations of the cellular localization of the cRGD we functionalized the cRGD with the fluorescent dye 5-(dimethylamino)-naphthalene-1-sulfonyl, (dansyl, as shown in scheme 4/Figure S4).

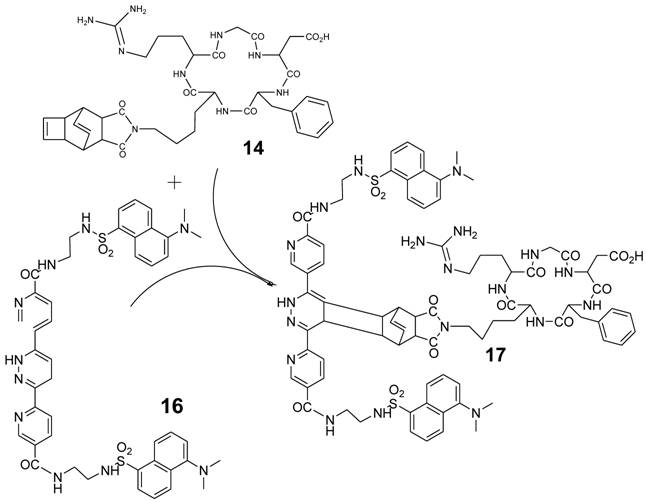

 Figure S4

(Scheme 4) shows the DARinv reaction of the diaryl-tetrazine harbouring the 5-(dimethylamino)-naphthalene-1-sulfonyl dye 16 with cRGD functionalized with the Reppe Anhydride 14 to the product 17 (cRGD-BioShuttle-dansyl).

Int J Med Sci Image

Synthesis of the cRGD-dansyl 17

2 µmol (1.75 mg) of purified 14 reacts over 24 hours with 2.5 µmol (2.18 mg) 16 dissolved in DMSO at room temperature to the product 17. The reaction mixture was concentrated. After HPLC purification the estimations of identity show in position 1634, Mode m/e.

Exact Mass: 1633.64; Mol. Wt.: 1634.84

m/e: 1633.64 (100.0%), 1634.64 (97.8%), 1635.65 (39.3%), 1636.65 (14,2%), 1636.64 (11.9%), 1635.64 (10.8%), 1635.63 (9.4%), 1637.65 (4,7%), 1637.64 (4,2%), 1638.64 (1.6%)

C, 59.51; H, 5.61; N, 16.28; O, 14.68; S, 3.92

Chemotherapy treatment of MCF-7 breast cancer and HeLa cervix cancer cells

Pure temozolomide (TMZ) [Sigma-Aldrich, Germany (Cat. No. 76899)] was subdivided into two parts for subsequent processing. One part was kept underivatized for the following experiment and the second part, after chemical transformation to the corresponding acid chloride 7, was used for coupling to the cRGD [Peptides International, USA (Cat. No. PCI-3661-PI)] transporter molecule.

TMZ and cRGD-BioShuttle-TMZ 15 were both dissolved in 10 % aqueous solution of acetonitrile (Sigma-Aldrich, Germany). Control studies with acetonitrile were performed to exclude potential toxic effects of this solvent.

MCF-7 and HeLa cells were grown as subconfluent monolayers in RPMI (control) and in RPMI containing appropriate amounts of TMZ and the cRGD-BioShuttle-TMZ 15 (50 µM) and their behaviour was analyzed for up to 72 hours.

Morphological evaluation

Microscopical studies of the human cancer cells were carried out with an Olympus inverted microscope under phase contrast conditions. The magnification was 200fold. The cells were observed during their culture in medium and during treatment with the different drugs.

Cellular localization of the cRGD-BioShuttle-dansyl

In order to reconfirm our data documenting an endocytotic internalization of the cRGD into the cytoplasm of αvβ3 and αvβ5 integrin expressing cells we used the confocal laser scanning microscope (CLSM) of the Microscopy Core Facility of the German Cancer Research Center for qualified verification of the data. The pictures were taken with a Leica confocal microscope TCS SP5 II (excitation at 405 nm, emission at 420-560 nm) and examined with the Leica LAS-Software.

24 hours before CLSM measurements both cell lines, the HeLa and the MCF-7 cells (5×105), were cultivated in 8-well cell culture plates (Lab-Tek®) and treated with the cRGD-BioShuttle-dansyl (12.5 µM) 17.

Cytotoxic Measurements

For the toxicological characterization of the cRGD-BioShuttle-TMZ conjugate 15 as well as the cRGD and the TMZ alone as controls were added to the MCF-7 cell line's medium. The substances were incubated in a dilution series ranging from 12.5, via 25, 50, to 100 µM final concentrations up to 72 hours. The IC50 values were determined and also converted to the pIC50 scale (-log IC50) (Table 1).

Multiparametric Flow Cytometry Analysis

Cell size and granularity

The use of the flow cytometry parameters forward (FSC) and sideward (SSC) scatter of the cells give an indication on drug effects through the relative cell size and structural effects such as granularity. Both parameters suffice for a rough cell characterization. The cells (treated with the components as described above and an untreated control) could be clearly distinguished as shown in the Figure 5.


This manuscript details the synthetic steps of our new cRGD-BioShuttle-TMZ and illustrates the cellular uptake of this newly synthesized cRGD-BioShuttle-TMZ in comparison to its controls as outlined in the respective experiments. We examined MCF-7 and HeLa cells surface targeting of these molecules with the cytotoxic drug TMZ as a cargo.

Light Microscopical Studies

In light microscopy we first investigated the cell killing effect of cRGD-Bioshuttle-TMZ 15 compared to underivatized TMZ. We achieved a rapid and high local concentration and an accumulation of TMZ on the surface of the targeted αvβ3 integrin expressing MCF-7 cells by use of the cRGD-BioShuttle as delivery and targeting platform.

Figure 1 reveals the different effects of TMZ and cRGD-BioShuttle-TMZ on MCF-7 cells tested after 24 hours and 72 hours of treatment with a final concentration of 50 µM. Whereas the MCF-7 cells exhibit no formation of the squamous epithelium (B), the MCF-7 cells seem to be unimpressed by TMZ treatment (bottom row C) and resemble the untreated control (top row A) as shown in the microscopic pictures.

Figure 2 indicates a clear change of the MCF-7 phenotype dependent on the concentrations of cRGD-BioShuttle-TMZ of up to 50 µM. The untreated control cells are shown in the bottom row for each treatment regimen. The final concentrations of the cRGD-BioShuttle-TMZ and TMZ were from 12.5 µM, via 25 µM to 50 µM as indicated in the figure 2. A drastic cell killing of the MCF-7 cells was observed by the targeted approach, whereas the MCF-7 cells treated with underivatized temozolomide seemed to be not affected. Independent of the final TMZ concentrations used, they looked identical to the untreated control cells.

Cellular Localization Studies using Confocal Laser Scanning Microscopy - CLSM

In order to investigate the open question of the cellular localization of the cRGD-BioShuttle-TMZ we ligated a fluorescence dye to cRGD. This “BioShuttle” (cyclo RGD) connected to a fluorescent tag dansyl (as shown in scheme 4/Figure S4) was applied to the culture media of the αvβ3 and αvβ5 integrin expressing MCF-7 and the low expressing HeLa cells. The cells lines clearly show differences in the fluorescence signal localizations. Two hours after cRGD-BioShuttle-dansyl application a blue perinuclear dansyl fluorescence signal could be observed in MCF-7. The cell nucleus displayed no signal at all. The HeLa cells show a cells surface located fluorescence signal (Figure 3, top row).

24 hours after cRGD-BioShuttle-dansyl application the fluorescence signal increased in the cytoplasm of MCF-7 and at the surface of HeLa cells, but the signal localizations remained unaltered. A nuclear located fluorescence signal was still lacking (as shown in Figure 3, second row). The pictures from 48 and 72 hours after application demonstrate a decreased fluorescence signal suggesting an efflux of the dansyl fluorescence dye out of the MCF-7 cell's cytoplasm, whereas in contrast the fluorescence signal at the HeLa cell's surface is unchanged (Figure 3, row 3 and bottom row).

Cellular localization of the dansyl fluorochrome

For detailed information about the cellular localization of the dansyl fluorochrome 8 pictures of a z-stack were visualized in layers by CLSM. It is demonstrative, that some fluorescence signals are shown inside of the cells, but the signal is not only localized at the cell's surface but also detectable inside as pointed out in the legend of the figure 4.

Multiparametric FACS analysis

The morphological parameters of the FACS analysis shows an unaltered cell size (Figure 5, bottom row), whereas the granularity (influenced by size and structure of the cell nucleus and by the quantity of vesicles) is changed and shows an increased fraction of more granulized MCF-7 cells in all treatments (TMZ, cRGD, and cRGD-BioShuttle-TMZ) in contrast to the untreated MCF-7 control cells. As demonstrated in figure 5 the granularity of MCF-7 cells is increased in cells treated with TMZ and cRGD (100 µM respectively). The most conspicuous granularity was obtained after cRGD-BioShuttle-TMZ in the final concentration of 12.5 µM as shown in the blot of the figure 5 (right column, row 1).

The treatment of TMZ, cRGD, and cRGD-BioShuttle-TMZ in the concentrations as mentioned above shows no visible influence on the cell size of MCF-7 cells.

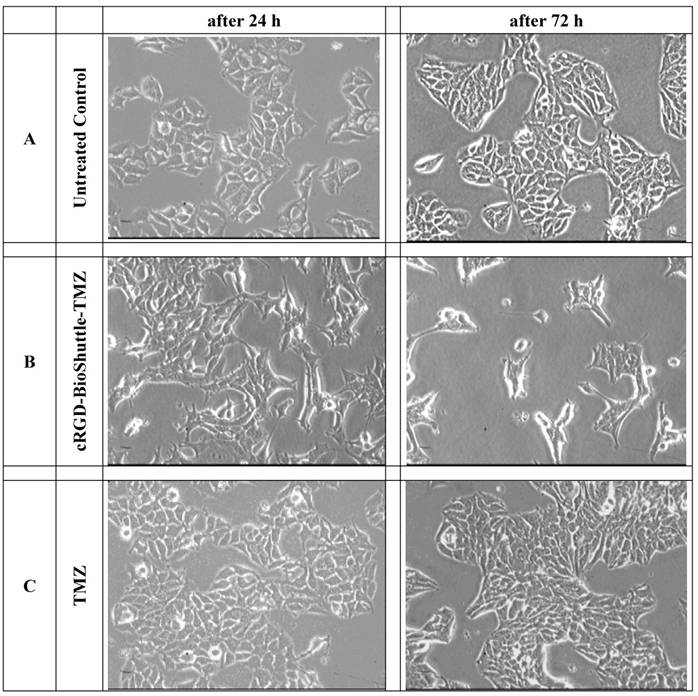

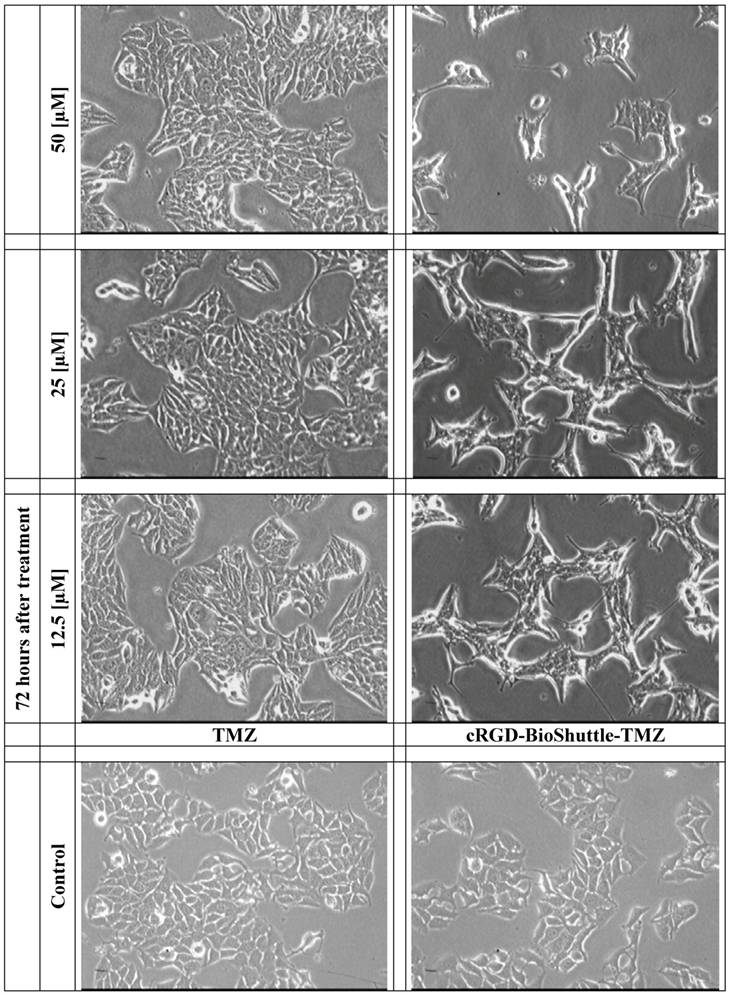

 Figure 1

shows microscopical DIC studies of human breast cancer cells (MCF-7). The top row (A) shows the phenotype of untreated MCF-7 cells. The center row (B) exhibits MCF-7 cells after 24 hours (left column) and 72 hours (right column) of treatment with the cRGD-BioShuttle-TMZ 15 targeted to the MCF-7 cells surface arranged αvβ3 and αvβ5 integrins. MCF-7 cells treated with TMZ alone are shown in the bottom row (C). The final concentrations of the tested TMZ and cRGD-Bioshuttle-TMZ were 50 µM. The magnification was 200× with phase contrast.

Int J Med Sci Image
 Figure 2

illustrates the concentration dependent change of the phenotype of MCF-7 cells 72 hours after treatment with TMZ alone and cRGD-BioShuttle-TMZ. The left column represents the TMZ treatment; the untreated controls are at the lower end. The columns on the right side show treatment with the cRGD-BioShuttle-TMZ beginning with 50 µM via 25 µM to 12.5 µM.

Int J Med Sci Image

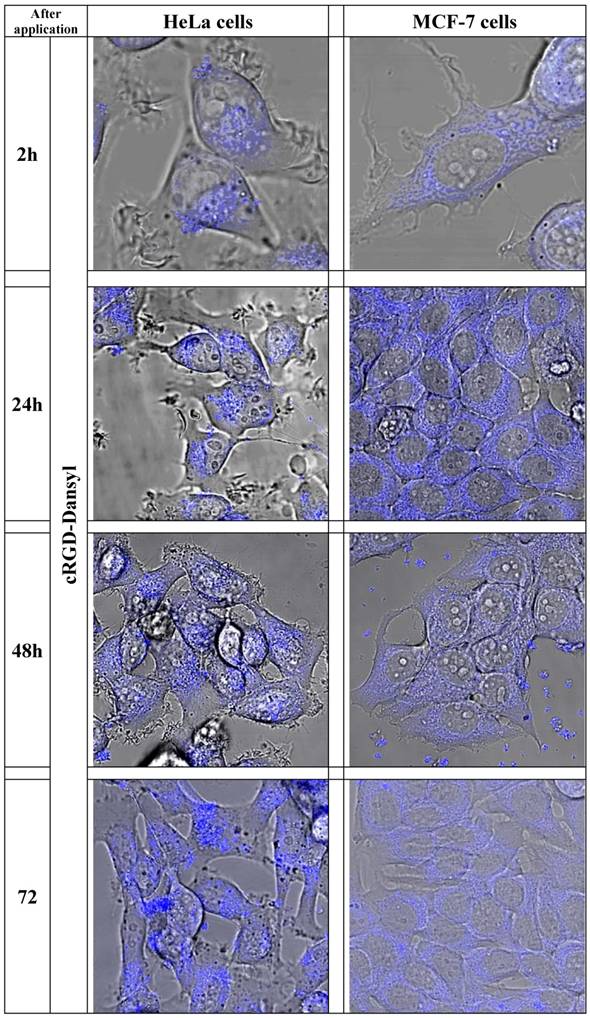

 Figure 3

The figure shows CLSM pictures of breast cancer cells MCF-7 (right column) and cervix cancer cells HeLa (left column). The lines of the figure indicate the measurement time points from 2h, 24h, 48h, up to 72h and suggest a different cellular localization of the cRGD-BioShuttle-dansyl molecule in both investigated cell lines. Two hours after cRGD-BioShuttle-dansyl application the molecule seems to be arrested on the surface of HeLa cells, whereas the dansyl-fluorescence can be observed in the cytoplasm of MCF-7 cells. 24 hours later and up to 72 hours, the localization of the fluorescence signal was unaltered on the surface of HeLa cells. The MCF-7 cells show a clear fluorescence signal in the cytoplasm except from cell nuclei which present no signal. From 48 to 72 hours after cRGD-BioShuttle-dansyl application the fluorescence signal in the MCF-7's cytoplasm diminishes increasingly. The final concentration of the cRGD-BioShuttle-dansyl was 50 µM.

Int J Med Sci Image

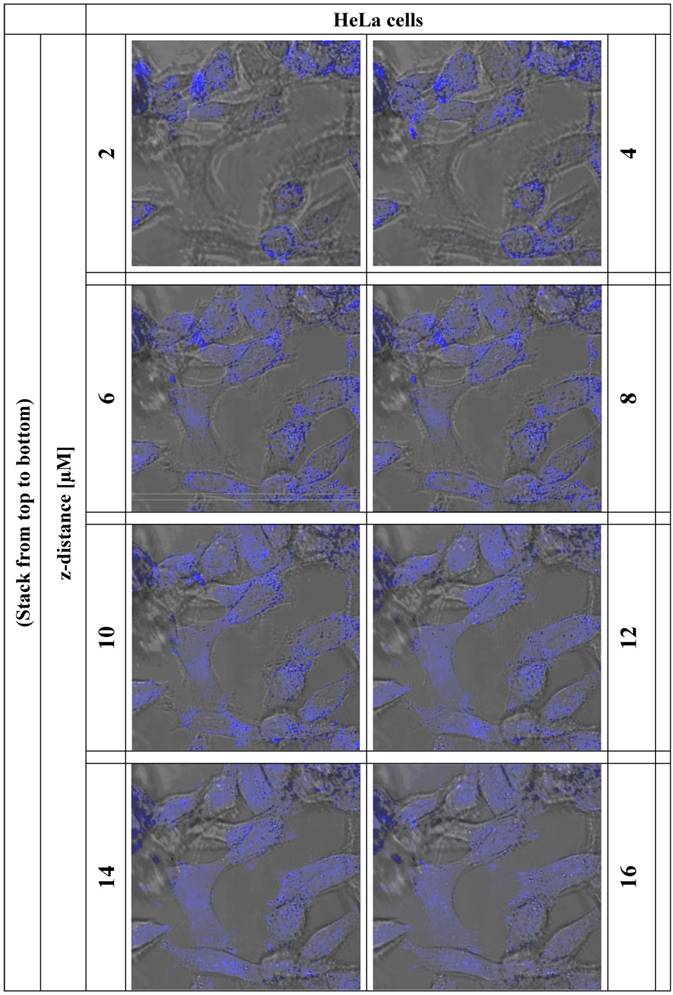

 Figure 4

The gallery represents 8 CLSM pictures of treated HeLa cells in the x, y, and in the z-direction showing layers across HeLa cells. The pictures are taken from top to the bottom in a 2 µM distance. In these HeLa cells we were able to detect also some material taken up by these cells.

Int J Med Sci Image

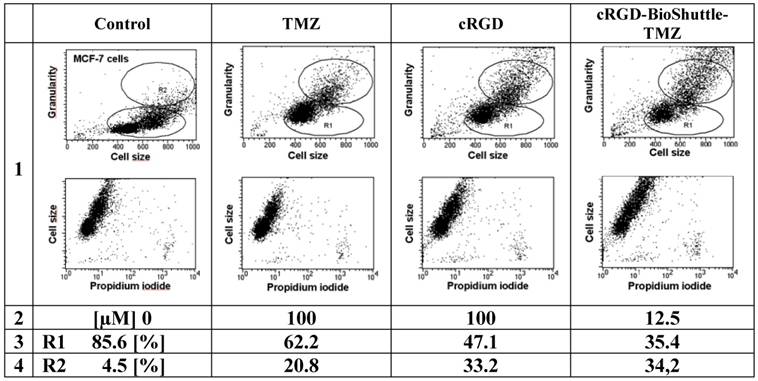

 Figure 5

the FACS analysis blots illustrate from left to right the effect of control TMZ, cRGD, and cRGD-BioShuttle-TMZ on the cell granularity (top row) and on the cell size (bottom row) of MCF-7 cells. As shown in the top row of the figure, the granularity differs from the untreated control and increases from the left (via TMZ and cRGD) to the right column (cRGD-BioShuttle-TMZ), whereas the cell size remains unaltered (as shown in the bottom row). The highest granularity is shown in the MCF-7 cells treated with the cRGD-BioShuttle-TMZ in an 8-fold reduced application dose (right column, top row). In comparison to the control (left column) the MCF-7 cells show an increased amount of a fraction of granularity cells (R2).

Int J Med Sci Image

A comparison of the flow cytometry data (Table 1) to the CLSM data as shown in Figure 3 right column is useful. In the image of the 24 hours time point after application with cRGD-BioShuttle-dansyl the MCF-7 cells show a clear perinuclear endoplasmic reticular located blue fluorescence signal which represents an increase in the granularity resulting from the unstained endoplasmic reticulum surrounding the nucleus. As demonstrated in the Figure 5, second row, the cells treated with 100 µM TMZ show an increased amount of granular cells (20 %) compared to the untreated control with 4.5% granularity. In the sample of MCF-7 cells treated with the cRGD alone (100 µM), a cellular granularity of 33.2 % was measured. It is important to note that the MCF-7 cells treated with cRGD-BioShuttle-TMZ in an at least 8-fold reduced application dose (12.5 µM) feature the highest cell response with a cellular granularity of 34.2%.

Cellular sensitivity against cRGD, cRGD-BioShuttle-TMZ and TMZ alone - IC50 values

To measure the chemotherapeutic sensitivity against the investigated components, the TMZ, the cRGD, and the cRGD-BioShuttle-TMZ-conjugate were added to MCF-7 cells. Again, the substances were dissolved in an aqueous dilution series in culture medium in a concentration from 12.5 µM to 100 µM and applied over 72 hours. The data are presented in Table 1. With the flow cytometry analyses we showed the high sensitivity of MCF-7 against cRGD-BioShuttle-TMZ with an IC50 value of 12.5 µM, and a much lesser sensitivity against underivatized TMZ with an IC50 of 100 µM). The MCF-7 cells treated with cRGD (12.5 up to 100 µM) were unimpressed.

 Table 1

Effect of the temozolomide (TMZ), cRGD, and cRGD-BioShuttle-TMZ on the MCF-7 breast cancer cell line.

IC50 [µMol/L]100-12.5


As definitive treatments of metastases of breast cancer remain surgery, radiation therapy, and hormone therapy in the case of metastatic progress. Cytogenetic characteristics, like the range of the chromosome number between hypertriploidy and hypotetraploidy, could answer the question of the recalcitrance of metastatic breast cancer cells, exemplarily MCF-7 cells, against therapeutic interventions. But the timing of treatment for all stages of the disease remains controversial and new therapeutic approaches are needed [15, 16]. Encouraging results of the chemotherapeutic TMZ treatment in brain tumors [17] remain unendorsed in the treatment of breast cancer cells.

A May 28th 2010 search in the NCBI database PubMed with “RGD” “MCF-7” yields 26, and with “RGD” “HeLa” 89 hits. In its first 1995 publication the Huang group described inhibiting features of RGD-containing peptides against αvβ3 integrin expressing cells [18] whereas the activity of αvβ5 integrin was already documented from the Boulanger and Nemerow groups in 1993 [19, 20].

An explanation is that the integrin αvβ3 receptor is expressed at low levels in epithelial and mature endothelial cells but is upregulated on tumor cells and tumor endothelial cells of varying tumor types including breast cancer, and therefore became considered as a prognostic factor in breast cancer [21]. It was also documented that peptide ligands containing RGD amino acid sequences have a high affinity for integrins and after labelling with radioisotopes, could be used for imaging αvβ3 receptor levels by PET or SPECT studies [22]. The use of RGD peptides ligated with imaging components for cell specific targeting as tumor-diagnosing tool is broadly documented [23, 24]. All these documented radioligands may be valuable for monitoring antiangiogenic therapeutics. The ligation of such therapeutically active substances to RGD peptides could open a door for successful treatment of hardly tractable tumors like metastases expressing αvβ3 integrin. In comparison with the normal expression level of MCF-7 mammary cancer cells, αvβ3 low expressing HeLa cervix cancer cells were examined, which express the αvβ5 integrin and correlate with low invasiveness.

In flow cytometry, the increased relative amount of cells revealing granularity and the accession of the cell fraction featuring a clear augmentation of the granularity both might result from increased numbers of affected mitochondria, golgi apparatus or endoplasmatic reticulum. This could be explained with a pharmacologic effect of the cRGD, as well as of the TMZ alone. The BioShuttle construct containing the cRGD as targeting modul connected to the TMZ via the Diels-Alder Reaction with inverse electron demand [12] targets the αvβ3 and αvβ5integrin MCF-7 cell surface proteins as shown in the Figure 3. According to CLSM-pictures of the MCF-7 cells (Figure 3), an increased cytoplasmic coloring is indicative for a strongly increased amount of granularity in cells (R2) in the cytometric results. It is important to note that no changes in cell size could be observed.

The results of the present study demonstrate a close relationship of the reformulated drug to unanswered clinical questions as suitable solutions for the patients (as described in the introduction). Here we ligated TMZ to the cRGD, a peptide-based component, which accumulates at the cell's membrane surface holding a tremendous potential to optimize therapy. Enhanced local concentrations of active substances like TMZ at the cells surface, a feasible site of pharmacological action, allow expecting lower application doses with concomitantly decreased side-effects. The uptake and internalization into the cells cytoplasm is presumably documented [25]. The criteria to determine the applicability for targeting including accessibility, specificity, safety and subcellular precision are documented [26-30]. In order to fulfill all these biomedical aspects, the TMZ drug was bound as a cargo to transporter molecules (cRGD-BioShuttle-TMZ) with special chemical methods [31]. These coupling reactions however, required the reformulation of the active drug TMZ and can lead to novel properties of the TMZ. Chemoselective reaction-conditions in aqueous solution and at room temperature were obtained by chemical ligation of functional peptides via the DARinv. The “click chemistry” based on the DARinv with “inverse electron demand” resulted in an impressive efficiency as illustrated in scheme 3/Figure S3 and is well documented [12]. This reaction enhanced the economics of the chemical reaction by the following parameters: ① increase of the reaction rate, ② gentle reaction conditions at room temperature, and ③ resulting in reaction kinetics with stoichiometric reaction partners without excess of the educts. The BioShuttle-mediated delivery and targeting platform can facilitate the transport to target cells [31, 32]. Despite the fact that the IC50 value can vary, depending on factors like the cell line, the test protocol, and the investigator, this estimation gives useful and helpful information on the relative toxicity [32]. Regarding the difference in IC50 values between the TMZ at 100 µmol/L and cRGD-BioShuttle-TMZ at 12.5 µmol/L, it becomes obvious that the cRGD-BioShuttle-TMZ offers a high potential for treatment of patients and represents an attractive enhanced drug system for upcoming clinical combined chemotherapeutic approaches [33, 34].
